PCG Series 5-Port Lever Wire Connector — 50 Pack | ID:14
PCG Series 5-Port Lever Wire Connector — 50 Pack
This compact PCG Series wire connector combines 5 wire-entry positions with an individual orange lever for each entry. The clear body keeps the entry area visible, while the low-profile form helps organise connections where space is limited. The levers provide direct access to the terminals without screw heads. Supplied as a pack of 50 connectors.
Quick reference

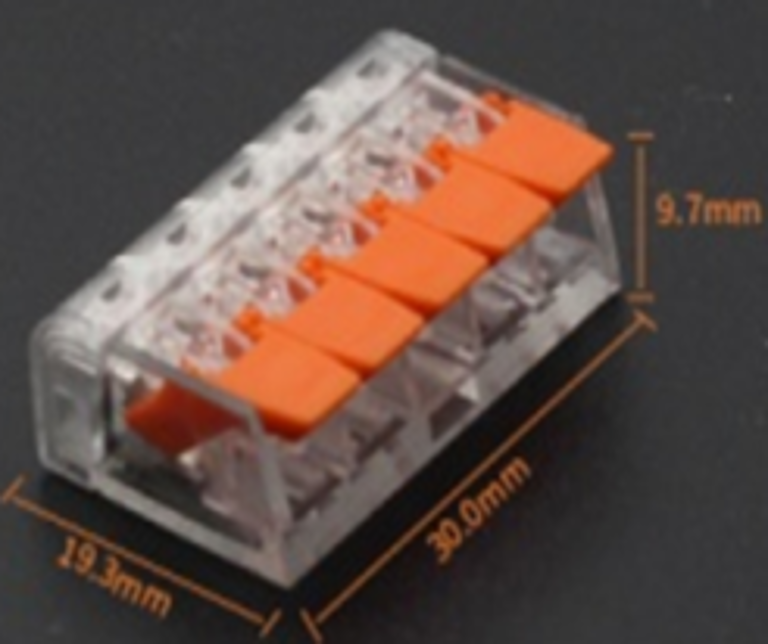

Product view
English catalogue reference
Practical features
- Individual orange levers make the terminal entries easy to identify.
- Clear housing allows visual inspection of the entry area.
- Compact grouped layout keeps multiple wire entries together.
Product details
| Detail | This variant |
|---|---|
| Series | PCG Series |
| Form | Compact lever connector |
| Entry layout | 5 wire entry positions |
| Operation | Lever operated |
| Colour | Clear / orange |
| Pack quantity | 50 connectors |
| Catalogue reference | ID:14 |
| Body footprint | 30.0 × 19.3 mm |
| Overall height | 9.7 mm |

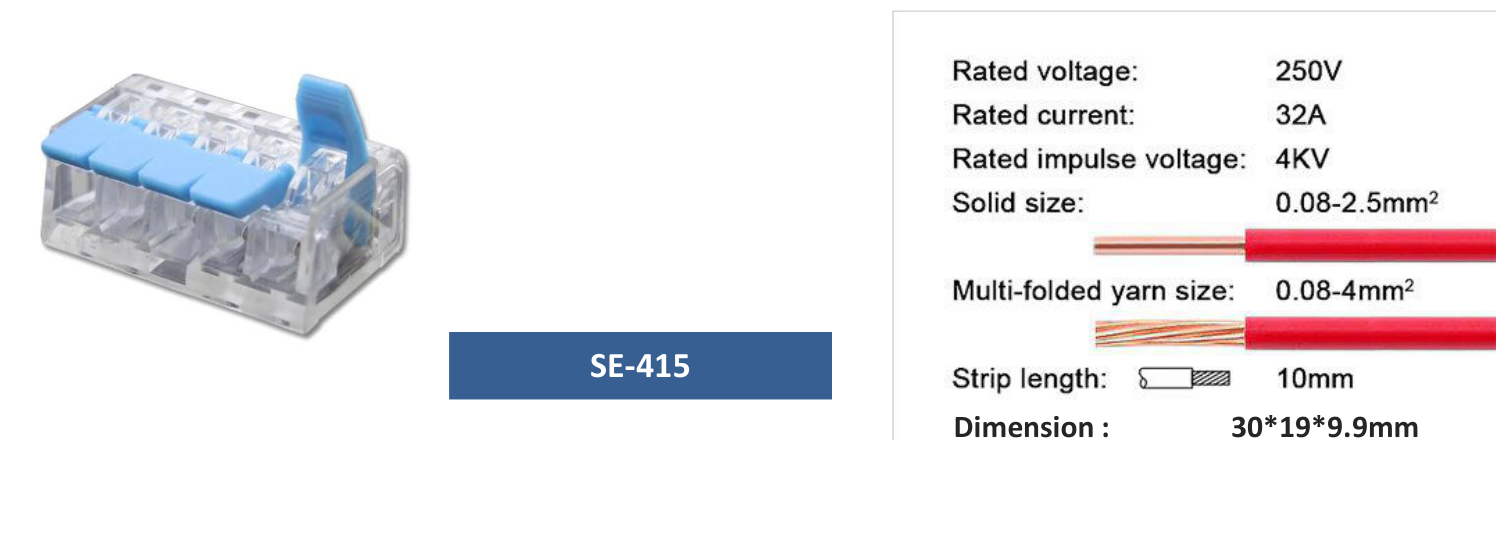

Published reference specifications
SIBASS Electric · SE-415
These are the published values for the reference model shown; NCMASTER stock equivalence remains to be confirmed.
| Specification | Published reference value |
|---|---|
| Overall dimensions (as printed) | 30 × 19 × 9.9 mm |
| Rated current | 32 A |
| Rated voltage | 250 V |
| Rated impulse voltage | 4 kV |
| Solid conductor | 0.08–2.5 mm² |
| Stranded conductor | 0.08–4.0 mm² |
| Strip length | 10 mm |
Australia-wide supply from Melbourne
Stocked in Melbourne with delivery available across Victoria, New South Wales, Queensland, South Australia, Western Australia, Tasmania, the Australian Capital Territory and the Northern Territory.
Browse the NCMASTER wire connector range for other connector layouts and pack sizes.
