222 Series Push-in Wire Connector — 50 Pack | ID:11
222 Series Push-in Wire Connector — 50 Pack
This 222 Series push-in wire connector groups the wire-entry points into a compact clear body with a coloured insert. The transparent housing keeps the entry area visible, while the compact shape helps keep wiring assemblies organised. This variant uses push-in entry rather than external operating levers and is supplied as a pack of 50 connectors.
Quick reference
Product view
English catalogue reference
Practical features
- Clear housing keeps the entry area visible.
- Coloured insert makes the connector easy to distinguish.
- Compact body groups the wire entries in one component.
Product details
| Detail | This variant |
|---|---|
| Series | 222 Series |
| Form | Push-in connector |
| Entry layout | Push-in entry |
| Operation | Push-in |
| Colour | Clear / orange |
| Pack quantity | 50 connectors |
| Catalogue reference | ID:11 |

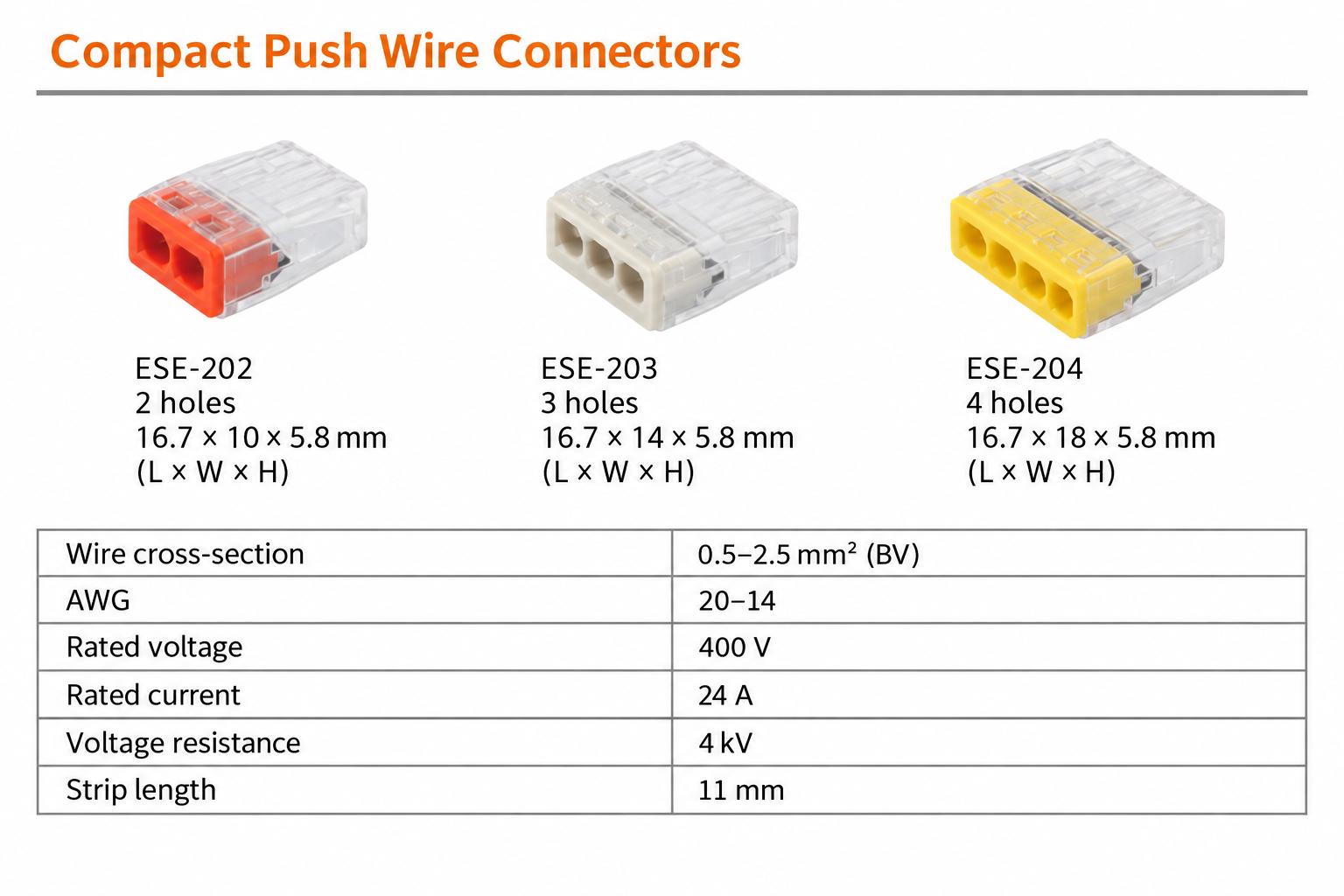

Published reference specifications
AIBEIKEN / ABILKEEN · ESE-202 / ESE-203 candidates
These are the published values for the reference model shown; NCMASTER stock equivalence remains to be confirmed.
| Specification | Published reference value |
|---|---|
| ESE-202 reference size | 16.7 × 10 × 5.8 mm |
| ESE-203 reference size | 16.7 × 14 × 5.8 mm |
| Rated current (reference) | 24 A |
| Rated voltage (reference) | 400 V |
| Solid conductor (reference) | 0.5–2.5 mm² |
| Wire range (as printed) | AWG 20–14 |
| Voltage resistance | 4 kV |
| Strip length | 11 mm |
Australia-wide supply from Melbourne
Stocked in Melbourne with delivery available across Victoria, New South Wales, Queensland, South Australia, Western Australia, Tasmania, the Australian Capital Territory and the Northern Territory.
Browse the NCMASTER wire connector range for other connector layouts and pack sizes.
