Drag Chain Carrier HTTL25 - 25x38x1000mm Long Fully Enclosed
Click Image for Gallery
HTTL25 cable management

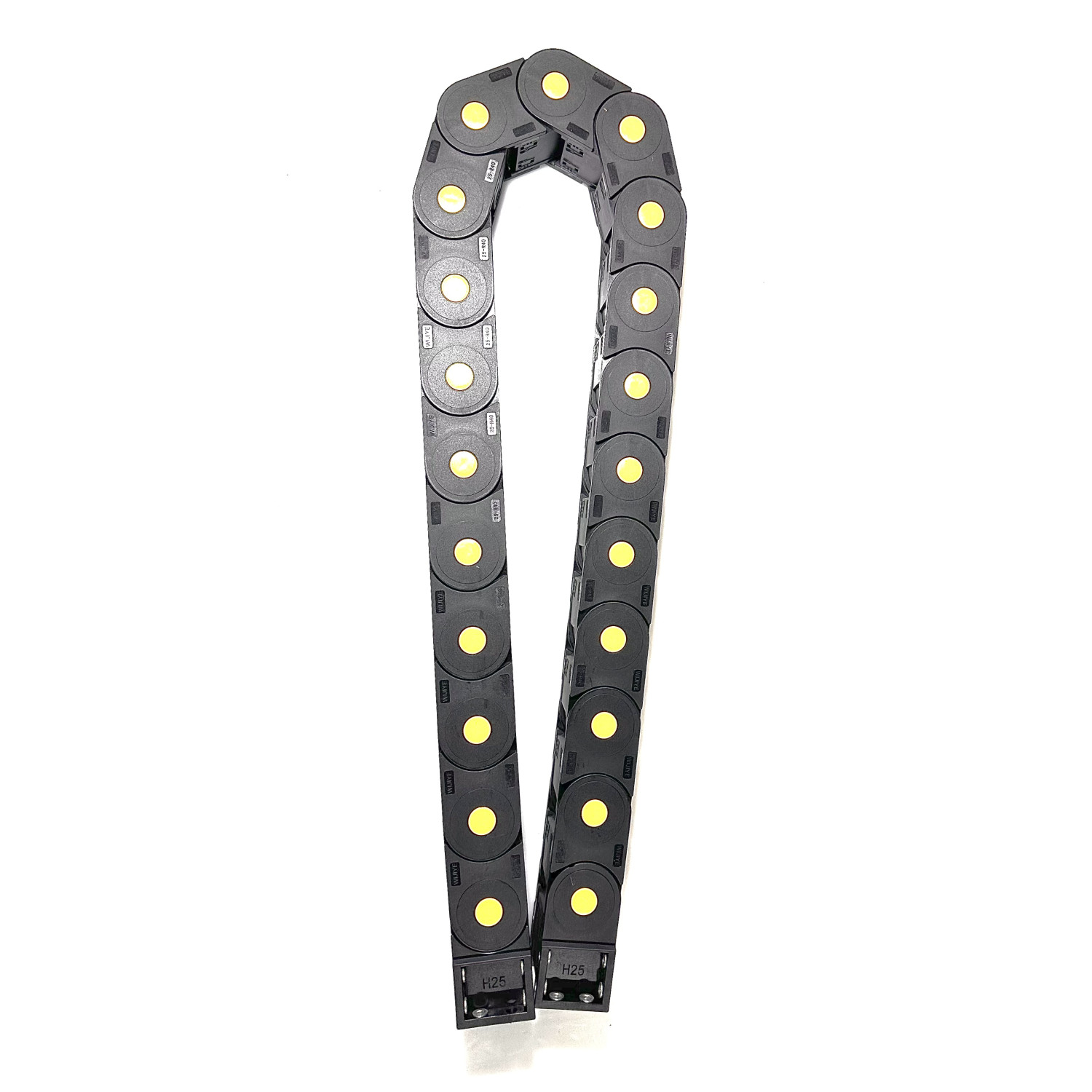

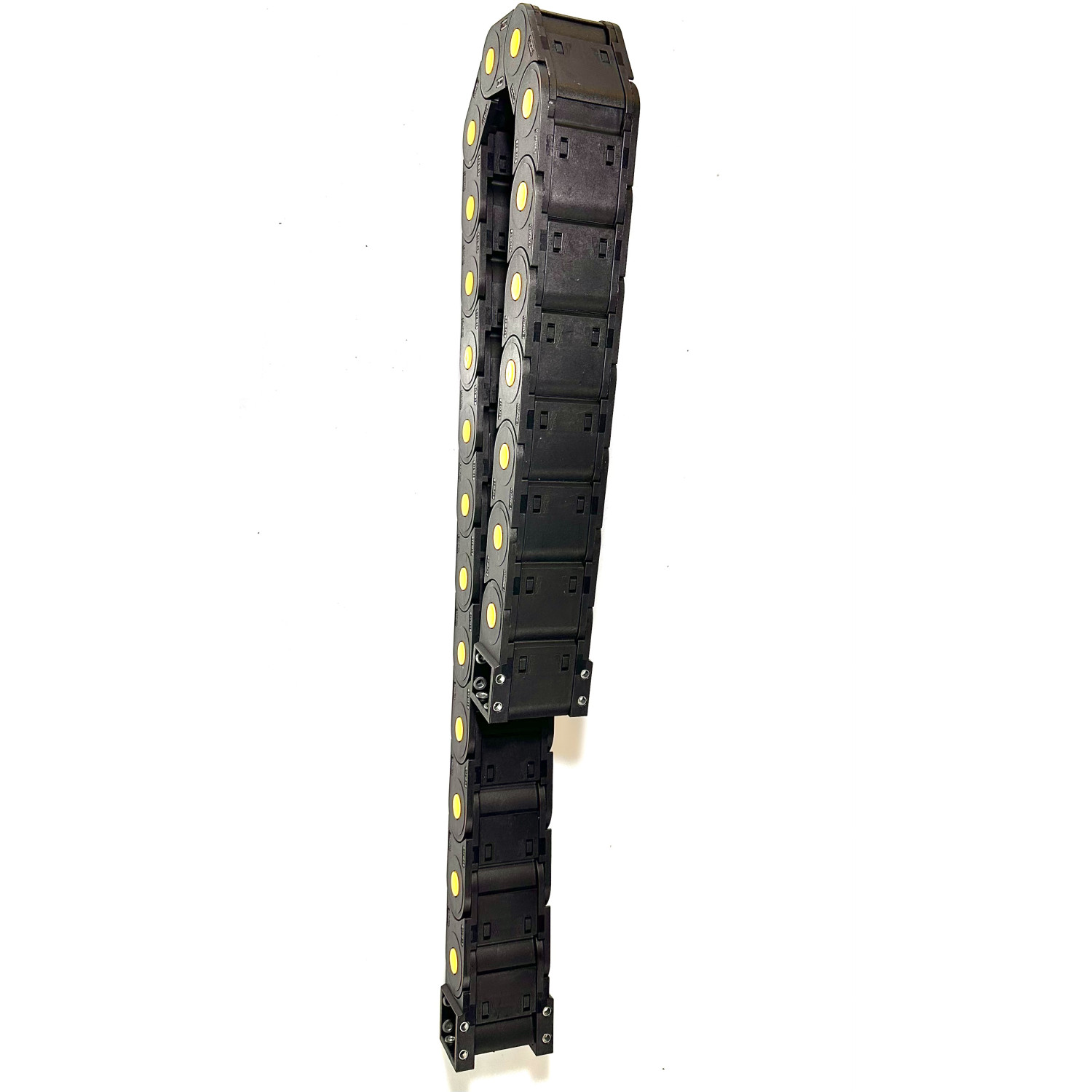

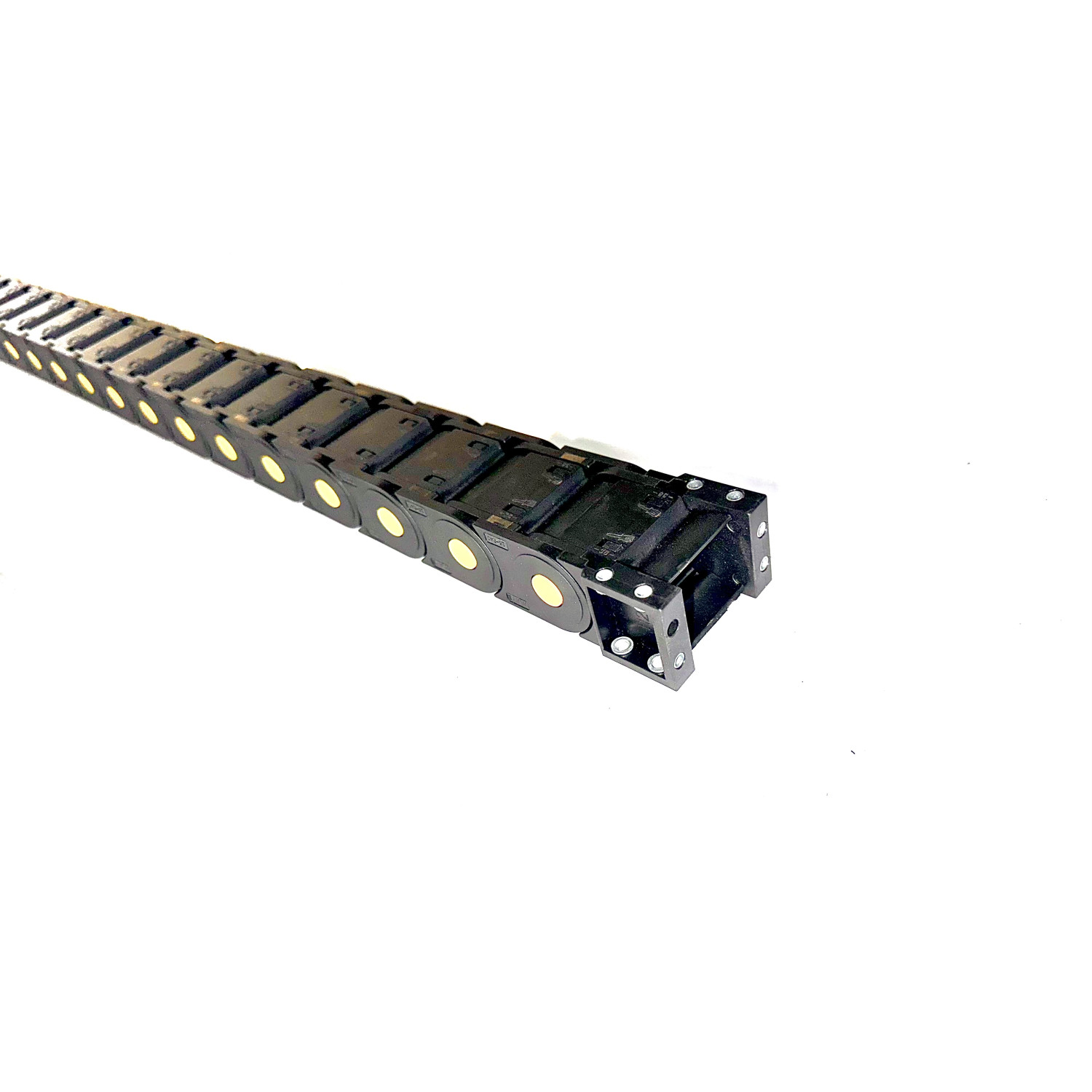

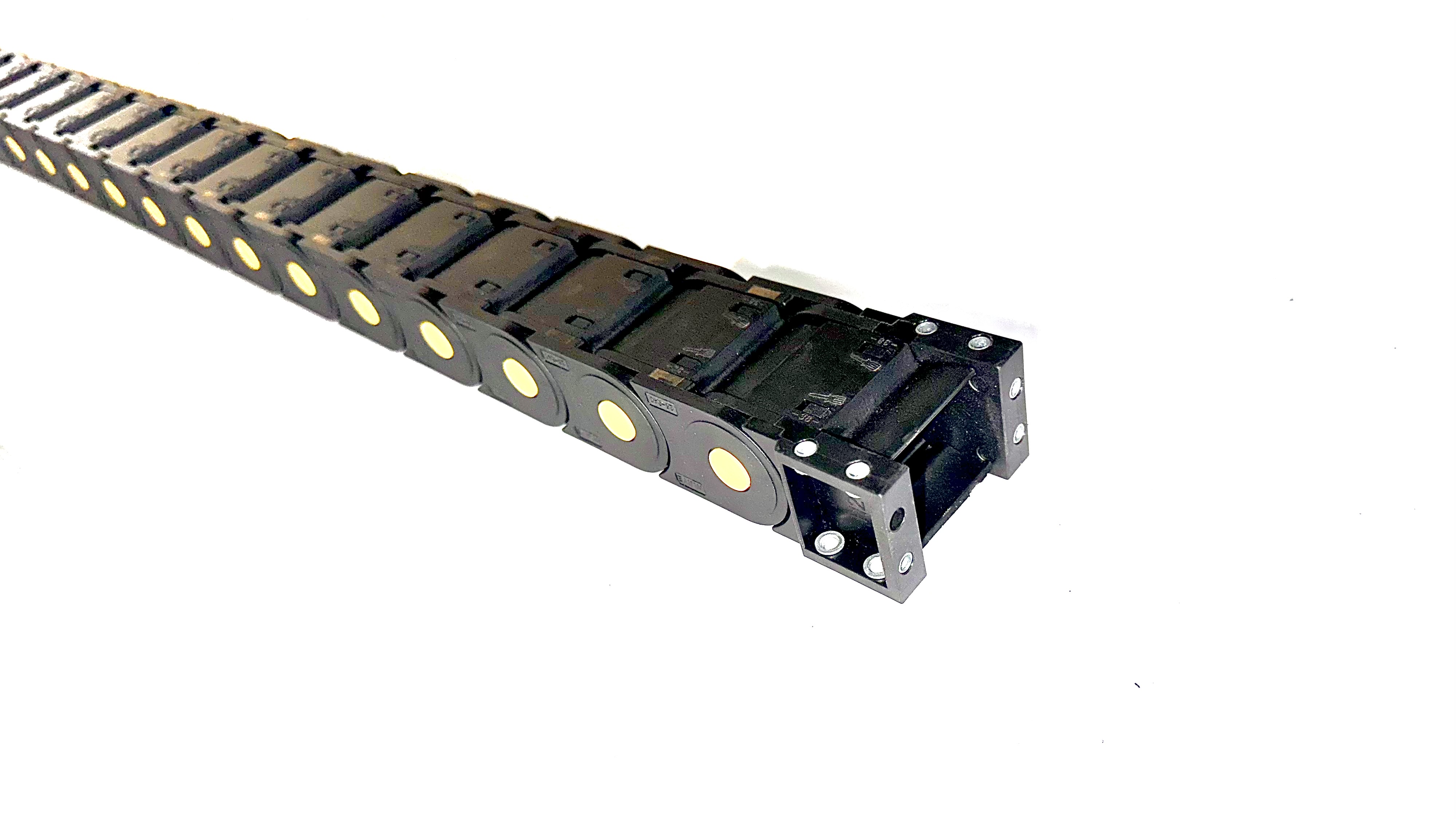

HTTL25 Cable Drag Chain - 25 x 38mm x 1000mm - Fully enclosed
A 1m HTTL25 reinforced-nylon cable carrier with 25 x 38mm internal space and fully enclosed links that help shield moving cables and hoses from chips and workshop debris. Suitable for CNC machinery, automation equipment and other repeated-motion installations.
At a glance
Internal size25 x 38mm
Length1000mm
Carrier styleFully enclosed
ConstructionReinforced nylon
Flexible cable and hose guidance
- Guides cables and flexible hoses through repeated machine movement.
- Also known as a cable carrier or energy chain for CNC and automation equipment.
- Reinforced nylon construction keeps the carrier light and corrosion resistant.
- Choose a bend radius that meets the minimum bend requirement of the largest cable or hose.
- Support and align both carrier ends to avoid twisting during travel.

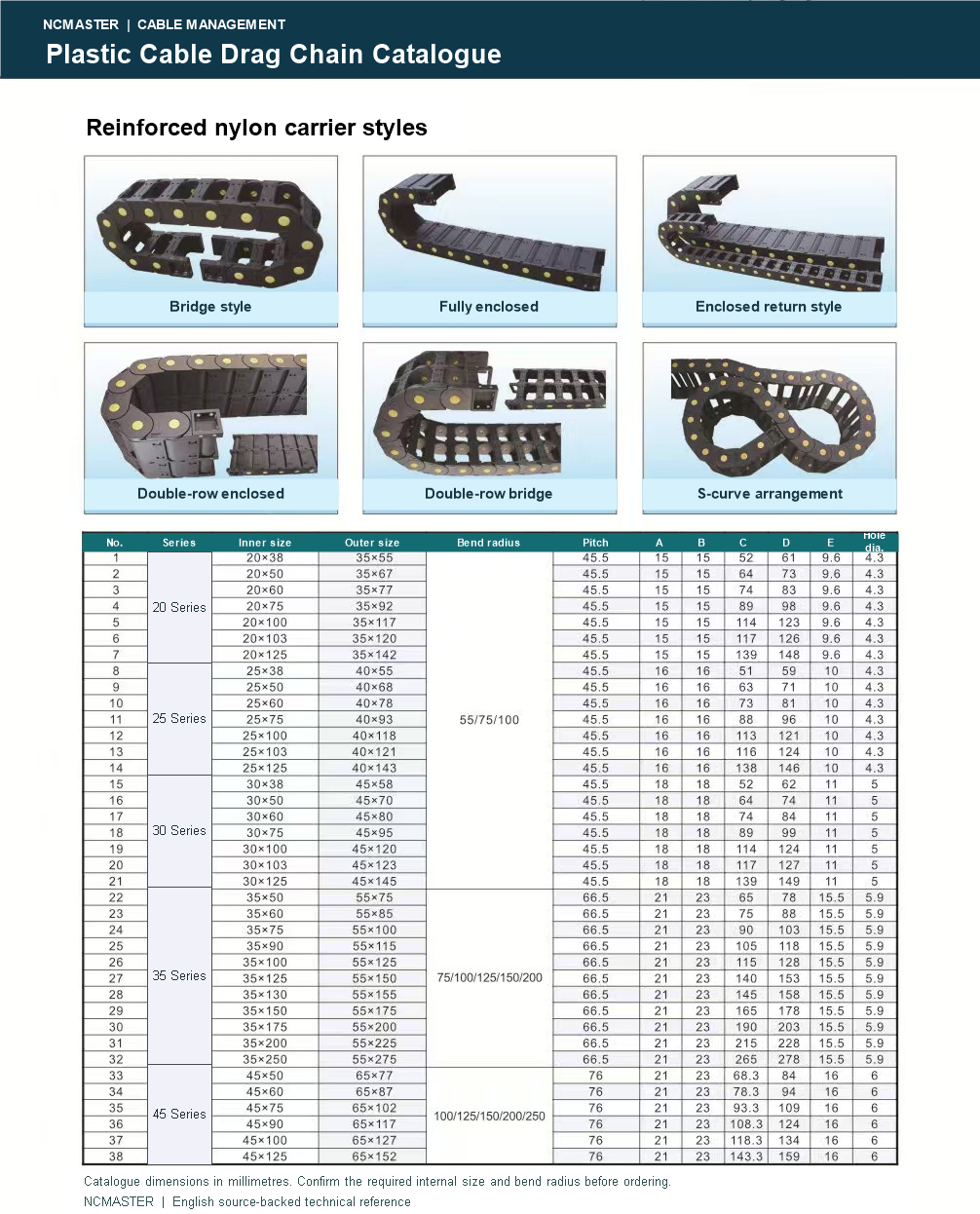

Dimensional data sheet
The internal size identifies the usable cable space. Confirm the selected bend radius and mounting arrangement for the installation.
SeriesHTTL25
Internal size25 x 38mm
Outside size40 x 55mm
Bend radius options55 / 75 / 100mm
Pitch45.5mm
Connection reference4.3mm
Open full-size English dimensional table
Ordering note
This listing is for one 25 x 38mm x 1000mm fully enclosed cable drag chain.
Australia-wide supply
Stocked in Melbourne for delivery to Victoria, New South Wales, Queensland, South Australia, Western Australia, Tasmania, the ACT and Northern Territory.
