Mach3 5-Axis LPT DB25 CNC Stepper Motor Breakout Board

Mach3 5-Axis LPT DB25 CNC Stepper Motor Breakout Board

Mach3 5-Axis LPT CNC Stepper Motor Breakout Board12-60VDC  + One DB25 Cable


Product Descriptions:
1. full support for MACH3, KCAM4, EMC2, and support parallel port to control the host computer software;
2. 5 output signal ,can connect with 5 stepper motor driver ;
3. 4 input port, Can connect to the limit switch, emergency stop, or other Input devices ,5 input signal indication LED;
4. One relay, it can be used to control spindle start and stop;
5. Interface board built-in 5V power converter chip, can be connected with DC 12V-36V power supply, power can be shared with the driver.

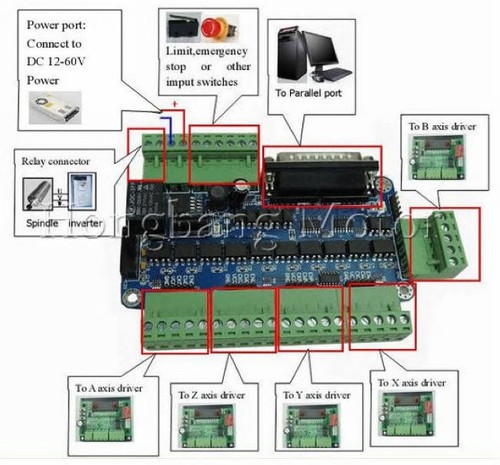

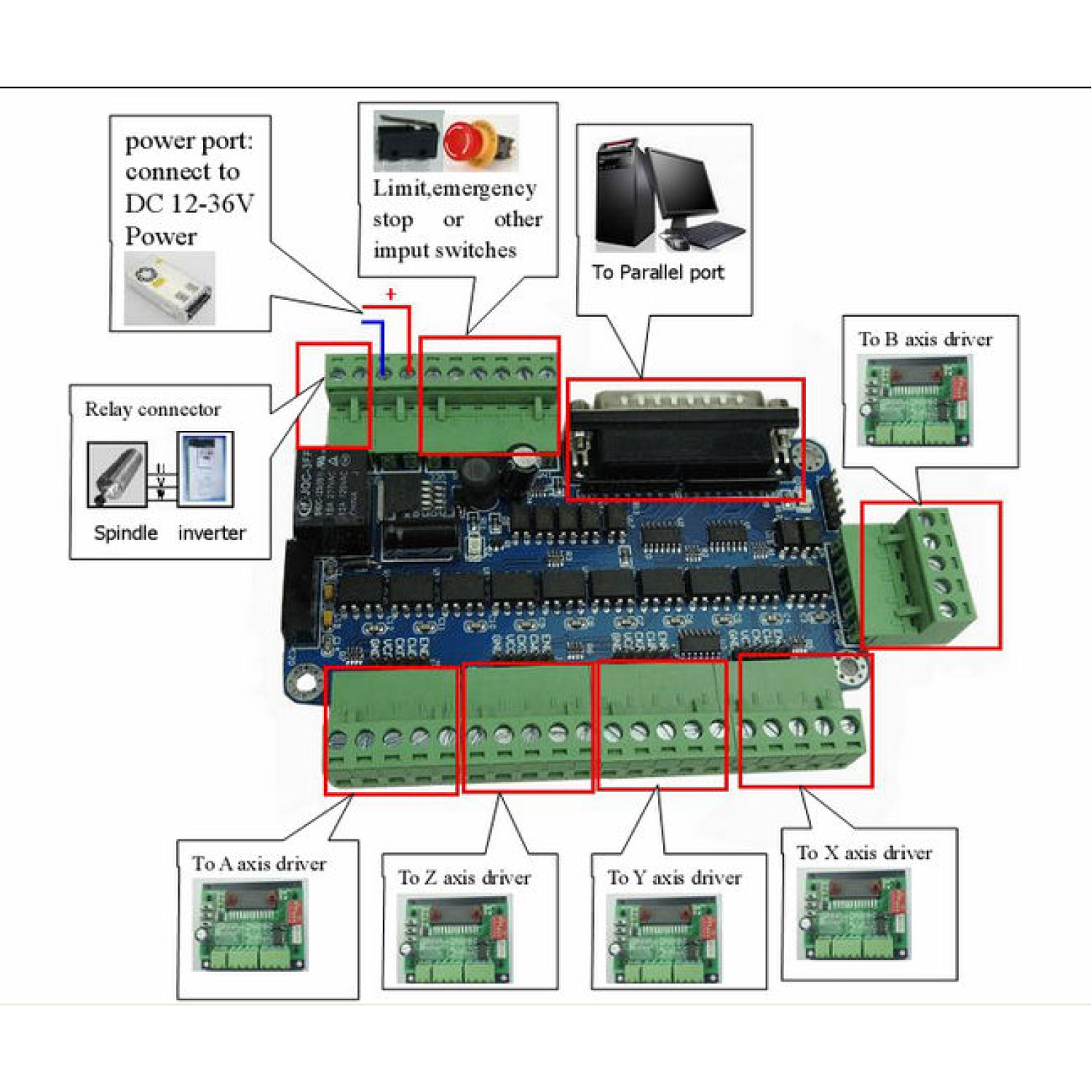

Electrical drawing:
DIY-Engraving-Machine-MACH3-USB-CNC-5-axis-Interface-Breakout-Board-Adapter-AU
Superiority:
DIY-Engraving-Machine-MACH3-USB-CNC-5-axis-Interface-Breakout-Board-Adapter-AU


Package Includes

1x Mach3 5-Axis LPT CNC Stepper Motor Breakout

1x English user manual will send by a CD or Email

1x DB25 parallel cable


Write a review

Please login or register to review
  • Views: 9255
  • Product Code: MACH3 5-AXIS LPT DB25 CNC STEPPER MOTOR BREAKOUT BOARD ID:983
  • Availability: In Stock
  • $84.80

Tags: Mach3 5-Axis LPT CNC Stepper Motor Breakout Board12-60VDC + One DB25 Cable
