CNC Spindle Kit with VFD - 1.5 kW 220V Air-Cooled ER11
1.5 kW 220 V Air-Cooled CNC Spindle Kit with VFD - ER11

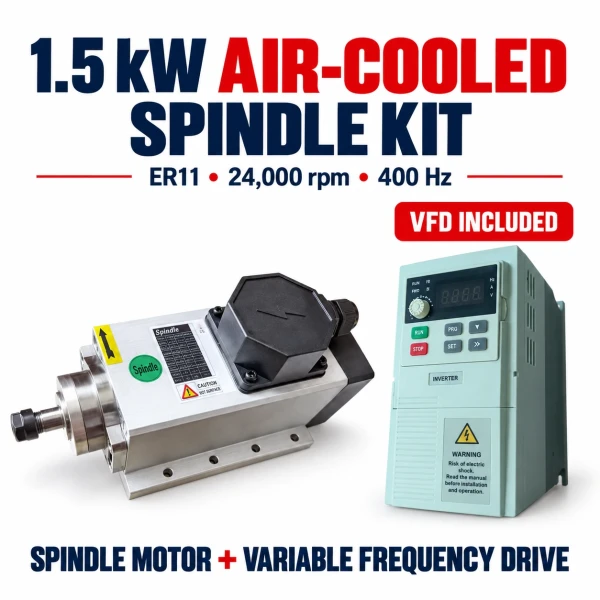

This kit includes a Jingyi 1.5 kW ER11 air-cooled spindle and a 1.5 kW variable frequency drive (VFD). The spindle is rated at 24,000 rpm and 400 Hz for CNC routing, engraving and edge trimming. Its integrated base flange supports direct plate mounting, while the built-in fan removes the need for an external water-cooling circuit.

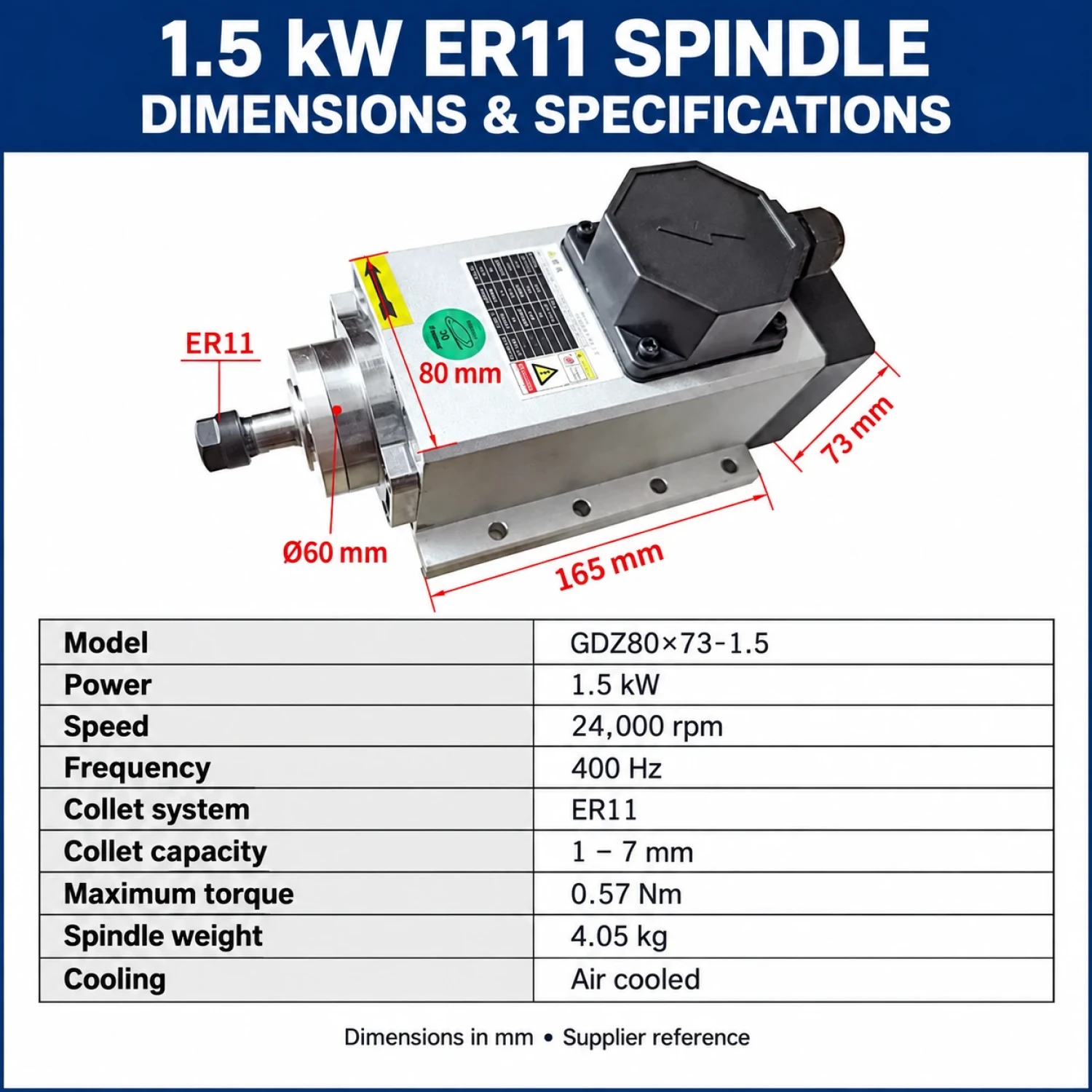

1.5 kW ER11 quick reference
English specifications and mounting reference

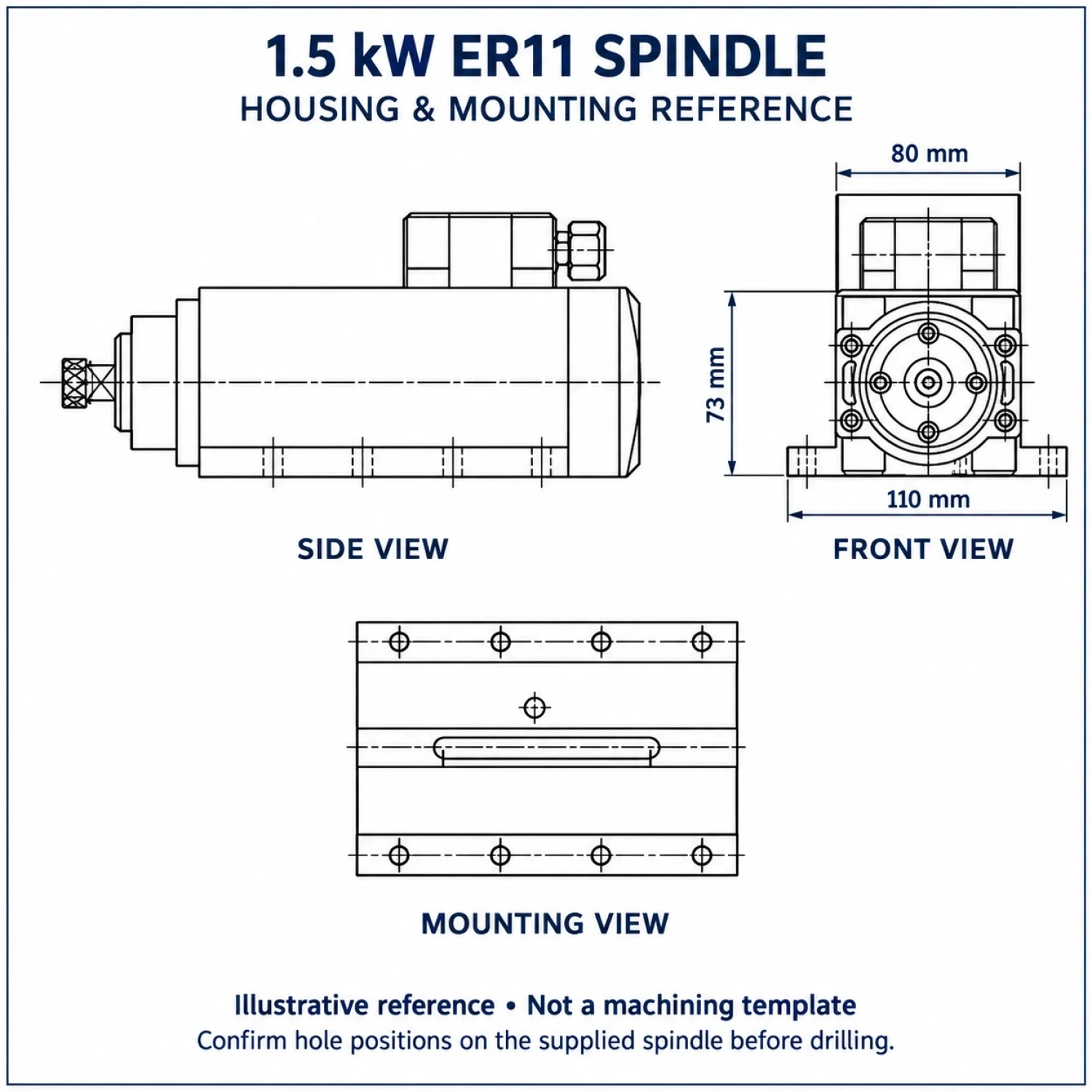

Open each sheet for the full-size view. The mounting illustration is a reference; confirm hole positions on the supplied spindle before drilling.
Why choose this spindle?
- Suitable for compact CNC routers, engraving machines and edge-trimming equipment.
- ER11 tooling is well suited to smaller cutter shanks used for detailed routing and engraving.
- The integrated base flange supports direct installation onto a compatible machine plate.
- Integrated fan cooling avoids an external coolant pump, reservoir and water hoses.
- The square body provides a practical mounting format for purpose-built CNC assemblies.
Technical specifications
| Rated power | 1.5 kW | Supply | 220 V, VFD driven |
|---|---|---|---|
| Collet system | ER11 | Cooling method | Integrated fan |
| Body section | 80 x 73 mm | Spindle nose | 60 mm diameter reference |
| Length reference | 165 mm | Mounting style | Square body with flange |
| Model | GDZ80 x 73-1.5 | Rated speed | 24,000 rpm |
| Frequency | 400 Hz | Collet capacity | 1–7 mm with matching collet |
| Maximum torque | 0.57 Nm | Spindle weight | 4.05 kg |
Choosing between ER11 and ER20
This 1.5 kW ER11 spindle is the smaller-tooling option in the Jingyi range. For an ER20 collet system and a 2.2 kW rating, compare the separate model below; its VFD and tooling requirements differ.
Before installation
Select compatible ER11 collets and confirm that the VFD output rating, spindle cable and mounting arrangement suit this 1.5 kW, 220 V spindle.
Australia-wide delivery
Delivery is available across Victoria, New South Wales, Queensland, South Australia, Western Australia, Tasmania, the Australian Capital Territory and the Northern Territory.
