PCG Series 3-Position Rail-Mount Lever Wire Connector — 25 Pack | ID:33
PCG Series 3-Position Rail-Mount Lever Wire Connector — 25 Pack
This PCG Series connector combines a lever-operated terminal body with a rail-mount base. Its 3-position layout and coloured levers make the entry positions easy to distinguish in a wiring assembly. The raised mounting form keeps the connector accessible when arranging a row of components. Supplied as a pack of 25 connectors.
Quick reference

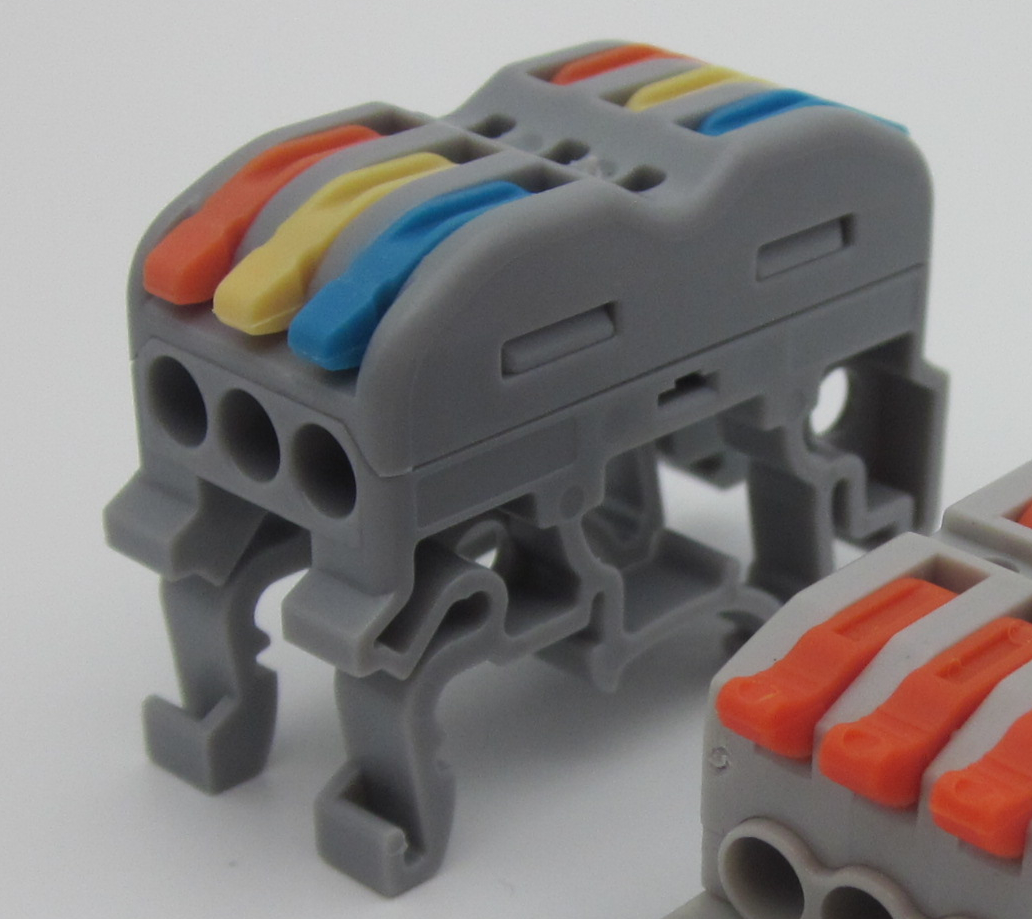

Product view
English catalogue reference
Practical features
- Rail-mount form supports organised rows of connectors.
- Coloured levers distinguish the visible terminal positions.
- Lever access allows the terminal body to be serviced without screw terminals.
Product details
| Detail | This variant |
|---|---|
| Series | PCG Series |
| Form | Rail-mount lever connector |
| Entry layout | 3 positions at each end |
| Operation | Lever operated |
| Colour | Grey / red / yellow / blue |
| Pack quantity | 25 connectors |
| Catalogue reference | ID:33 |
Published reference specifications
AIBEIKEN / ABILKEEN · ESE-K413A
These are the published values for the reference model shown; NCMASTER stock equivalence remains to be confirmed.
| Specification | Published reference value |
|---|---|
| Drawing length | 43 mm |
| Drawing width | 17.5 mm |
| Drawing height | 33 mm |
| Rated current | 32 A |
| Rated voltage | 400 V |
| Wire cross-section | 0.08–4.0 mm² (BV or RV) |
| Voltage resistance | 4 kV |
| Strip length | 10 mm |
| Contact material (source) | Tinned copper |
Australia-wide supply from Melbourne
Stocked in Melbourne with delivery available across Victoria, New South Wales, Queensland, South Australia, Western Australia, Tasmania, the Australian Capital Territory and the Northern Territory.
Browse the NCMASTER wire connector range for other connector layouts and pack sizes.
