Features

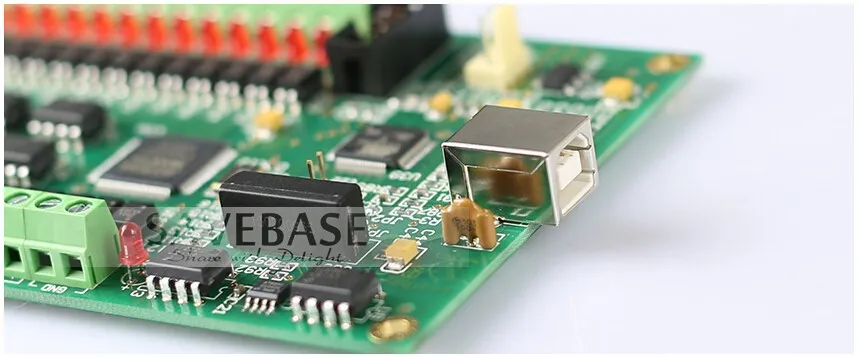

USB 2.0 communication interface, real-time transmission. No need to install any USB drivers and support hot-swapping.

Plug-and-Play like a USB flash disk. This card is compatible with all Windows system including 32 bits and 64 bits Windows 2000/XP/Vista/Windows 7.

55

Opto-coupling isolation all 16 inputs/8 outputs/4 axis motor outputs/spindle speed/speed test signals.

Safety and reliable. Output 200 kHz step-pulse frequency and using 10 MHz high-speed optical coupling electrical isolation.

This board has an original external ratio-adjustment knob input. It is very convenient to use the knob to adjust the feed rate (F), spindle speed (S) and jog speed (Jog).

This motion card can output precision spindle speed analog: 0-5V or 0-10V. You can connect a frequency inverter to control the spindle speed.

Besides, the card has a spindle speed signal input (Closed-loop threading is not supported). The Mach3 will display the spindle speed value in real-time. And provide real-time speed graph to make the speed variations clear and lively.

More Features

Support all the Mach3 versions, including the latest edition: Mach3 R3.042.040.

No need to install any USB drivers. Plug-and-Play on all Windows system including 32bits and 64 bits Windows 2000/XP/Vista/Windows 7.

Support for USB hot swapping. To monitor USB attachment state any time. While Mach3 is working, if you uproot USB cable, then plug it also can make it work at once.

Support 3 Axis linkages. Including inching, as well as 4 shaft linkage.

Maximum output 200 KHz step-pulse frequency. Suitable for servo and stepping drivers.

There are 8 super-speed 10 MHz optocouplers, 24 General optocouplers, so the total amounts of optocouplers are up to 34. Isolate all the input/output. The High costs design provides a complete anti-jamming function and perfect security protection.

Have on-board isolation power supply, NO external power supply. Simplify the requirements of electric power supply. It’s convenient to connect the external power supply can also be used, so you can have any choice you like.

Support the following functions: Automatic tool-setting, electronic handwheel, software limit, software backlash.

Speed: 48M, Real-time input signal without PC intervention, The Signal is independently processed by the Movement Control Cards. Ensure that you get really real-time information and reliability.

Have a status indicator to indicate Mach3 attachment and USB connectivity. All kinds of state are clear for you at a glance.

Have 16 input indicators. Clearly indicates the status of signal-input.

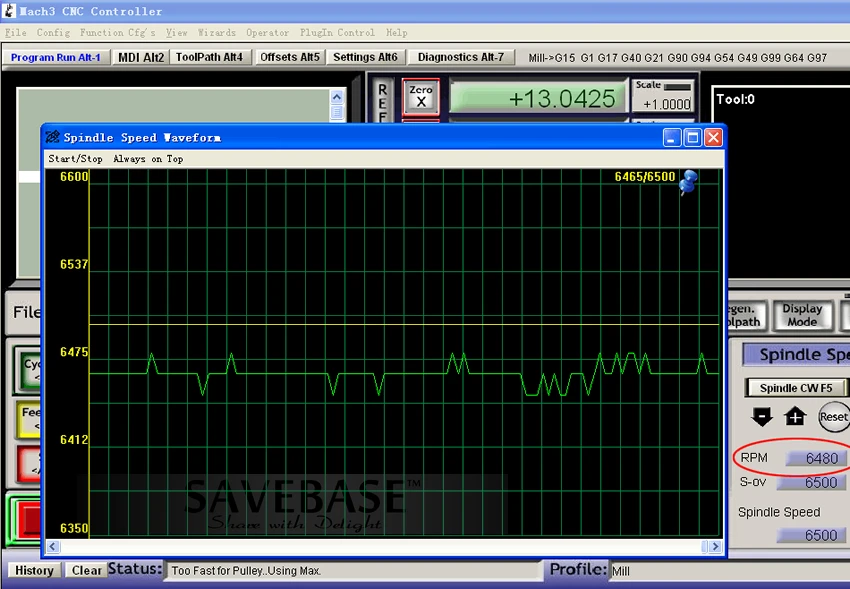

Have Speed-measurement function, The Spindle actual speed is displayed on the Mach3 interface in real-time. And provide real-time speed graph to make the speed variations clear and lively.

Applications

Suitable for all stepper and servo drivers that driven by Step and Dir signals.

This breakout board is just an interface board, NOT a stepper driver board, it must work together with the micro-step drivers(eg. MA860H etc..) to control the stepper motors. So, it CANNOT control the stepper motors solely.
