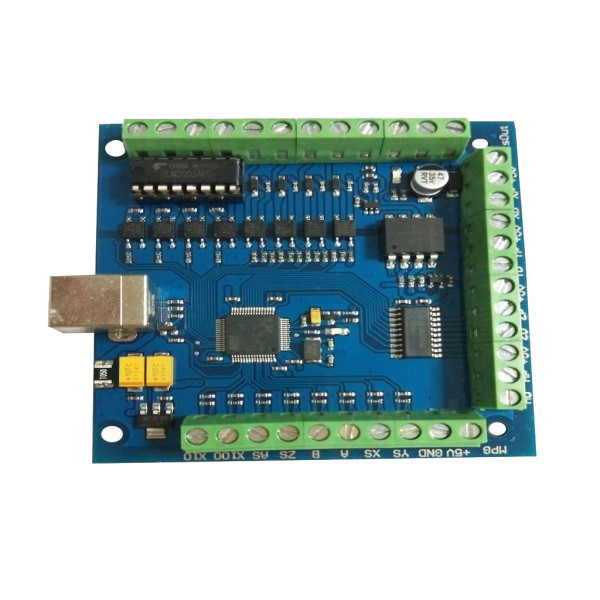

This USB motion control card has the below advantages: small volume, easy to use, has a strong anti-interference ability, No need to install any USB drivers,it can be used after plugging in the computer. , suitable for all versions of Windows. Fully supporting all Mach3 versions.

 1. Support for 4-axis linkage, you can connect four stepper motor drives or servo drives;
 2. Maximum step-pulse frequency is 100KHz, which is suitable for the servo or stepping motor;
 3. Support automatic probe tool
 4. Support Emergency input
 5. Support for limit switch
 6. Support for connecting electronic handwheel
 7. Need to use an external 24V DC power supply to isolate USB and external ports, and to make the system more stable.
 8. Have a 0-10V output port, you can use mach3 software to control the spindle motor speed.
 9. 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero, and another device
 10. 4 general-purpose isolated relay drive output interface, which can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps, and another device;
 11. 1 status LED, indicate connection status on the board.
