KV Series Colour-Coded Branch Wire Connector — 10 Pack
This KV Series branch-style wire connector has two entry positions at one end and four at the other. The compact body brings the wire-entry groups together, while individual levers keep each entry accessible during assembly and maintenance. This grey, red, blue variant is supplied as a pack of 10 connectors.
Quick reference

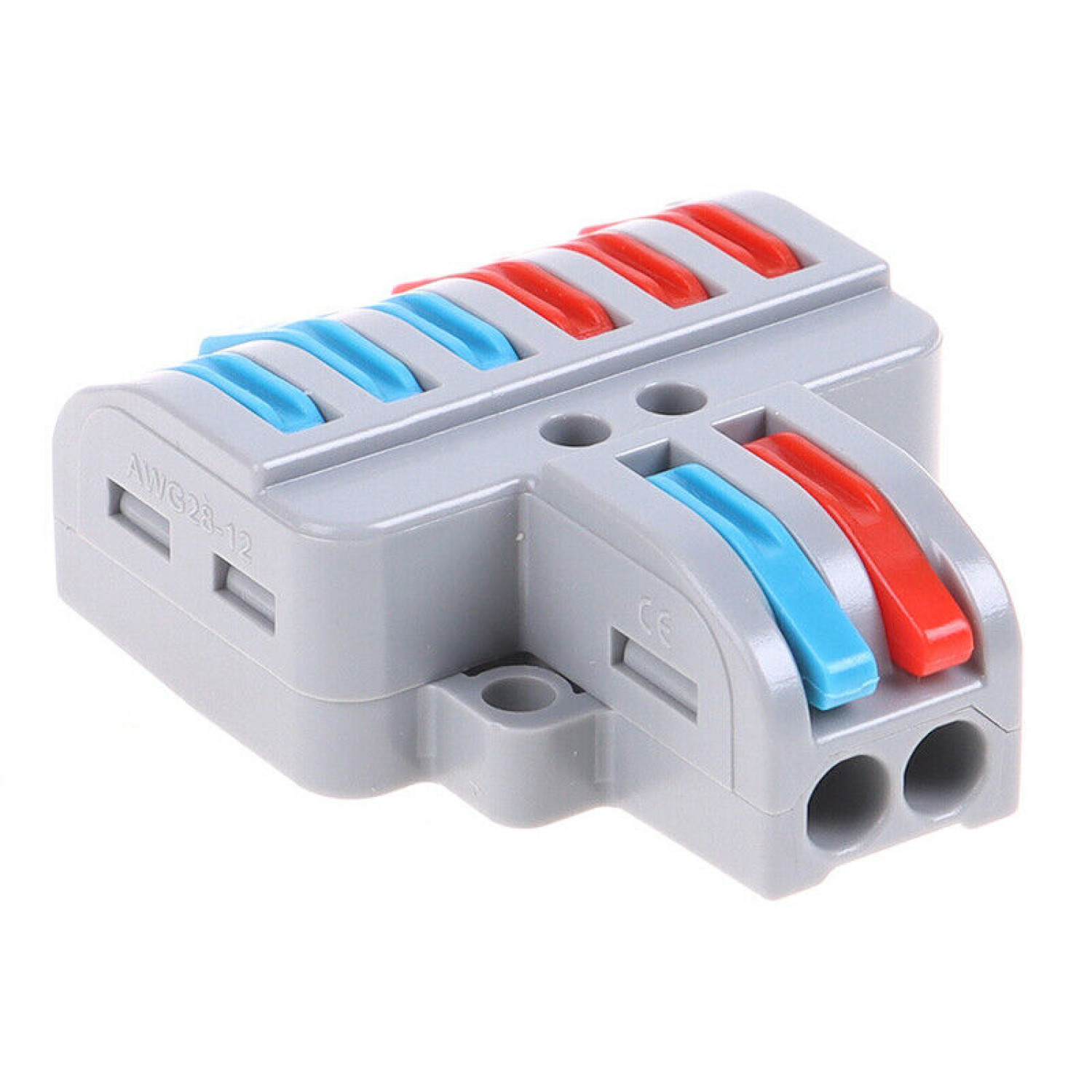

Product view

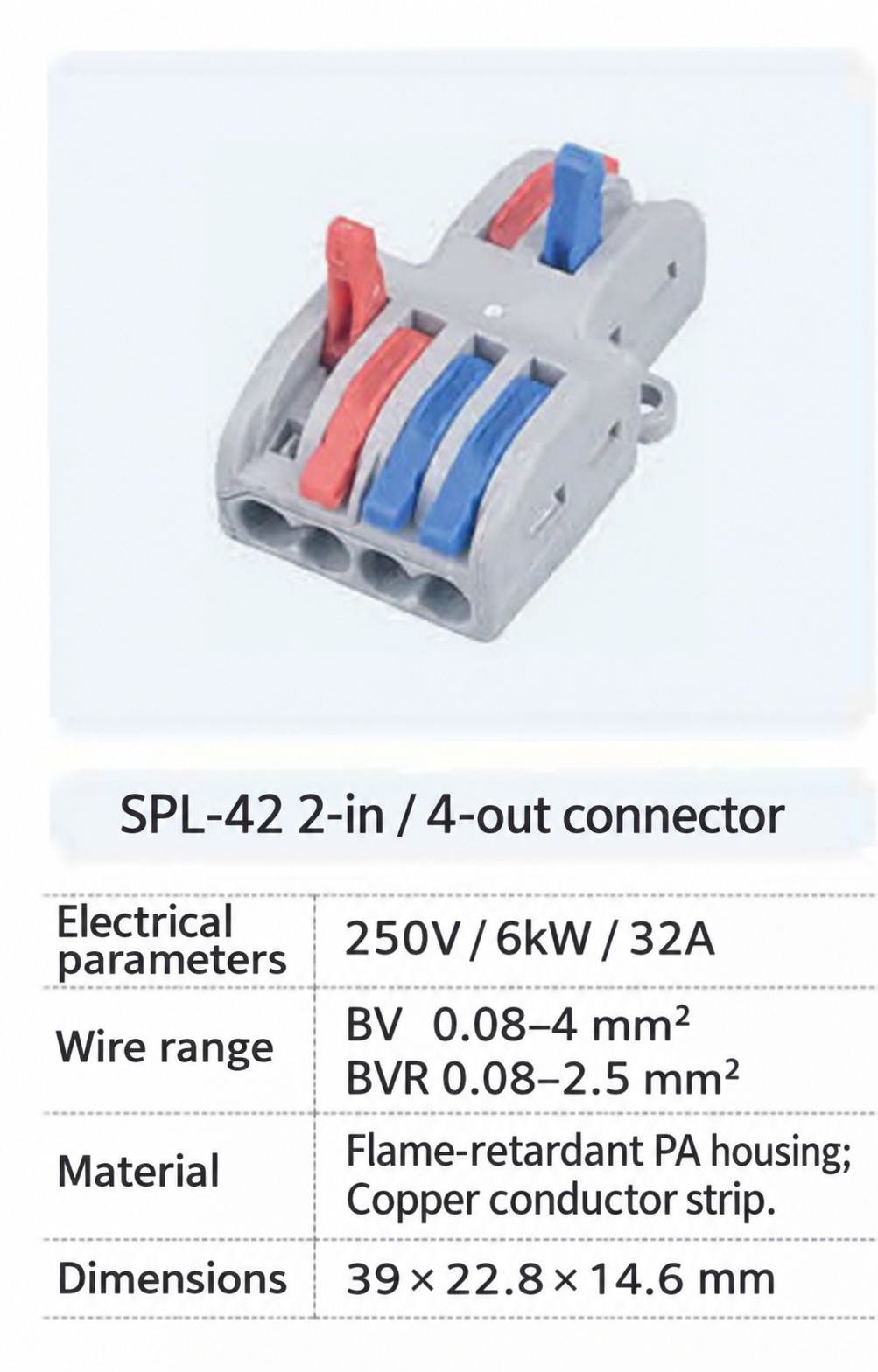

English catalogue reference
Practical features
- Two-entry and four-entry ends are grouped in one compact body.
- Individual levers provide access to the wire entries.
- The visible mounting lug provides an attachment point for the connector body.
Product details
| Detail | This variant |
|---|---|
| Series | KV Series |
| Form | Branch lever connector |
| Entry layout | 2 entries / 4 entries |
| Operation | Lever operated |
| Colour | Grey / red / blue |
| Pack quantity | 10 connectors |
| Catalogue reference | ID:53 |
Published reference specifications
Wenzhou Taihec catalogue, supplied by Evelta · SPL-42
These are the published values for the reference model shown; NCMASTER stock equivalence remains to be confirmed.
| Specification | Published reference value |
|---|---|
| Overall dimensions (as printed) | 39 × 22.8 × 14.6 mm |
| Rated current | 32 A |
| Voltage on catalogue card | 250 V |
| Solid wire (BV) | 0.08–4.0 mm² |
| Flexible wire (BVR) | 0.08–2.5 mm² |
| Housing (source) | PA |
| Contact strip (source) | Copper |
| Entry layout | 2 entries / 4 entries |
Australia-wide supply from Melbourne
Stocked in Melbourne with delivery available across Victoria, New South Wales, Queensland, South Australia, Western Australia, Tasmania, the Australian Capital Territory and the Northern Territory.
Browse the NCMASTER wire connector range for other connector layouts and pack sizes.
