SPL-8 Inline Lever Wire Connector — 10 Pack | ID:26
-1500x1500.jpg "SPL-8 Inline Lever Wire Connector — 10 Pack | ID:26")
SPL-8 Inline Lever Wire Connector — 10 Pack
The SPL Series inline connector brings opposed wire entries into one compact body, with 8 positions at each end. Individual levers give access to each entry without screw terminals, making the connector convenient for neat, serviceable wiring assemblies. This variant has a grey, orange finish and is supplied as a pack of 10 connectors.
Quick reference

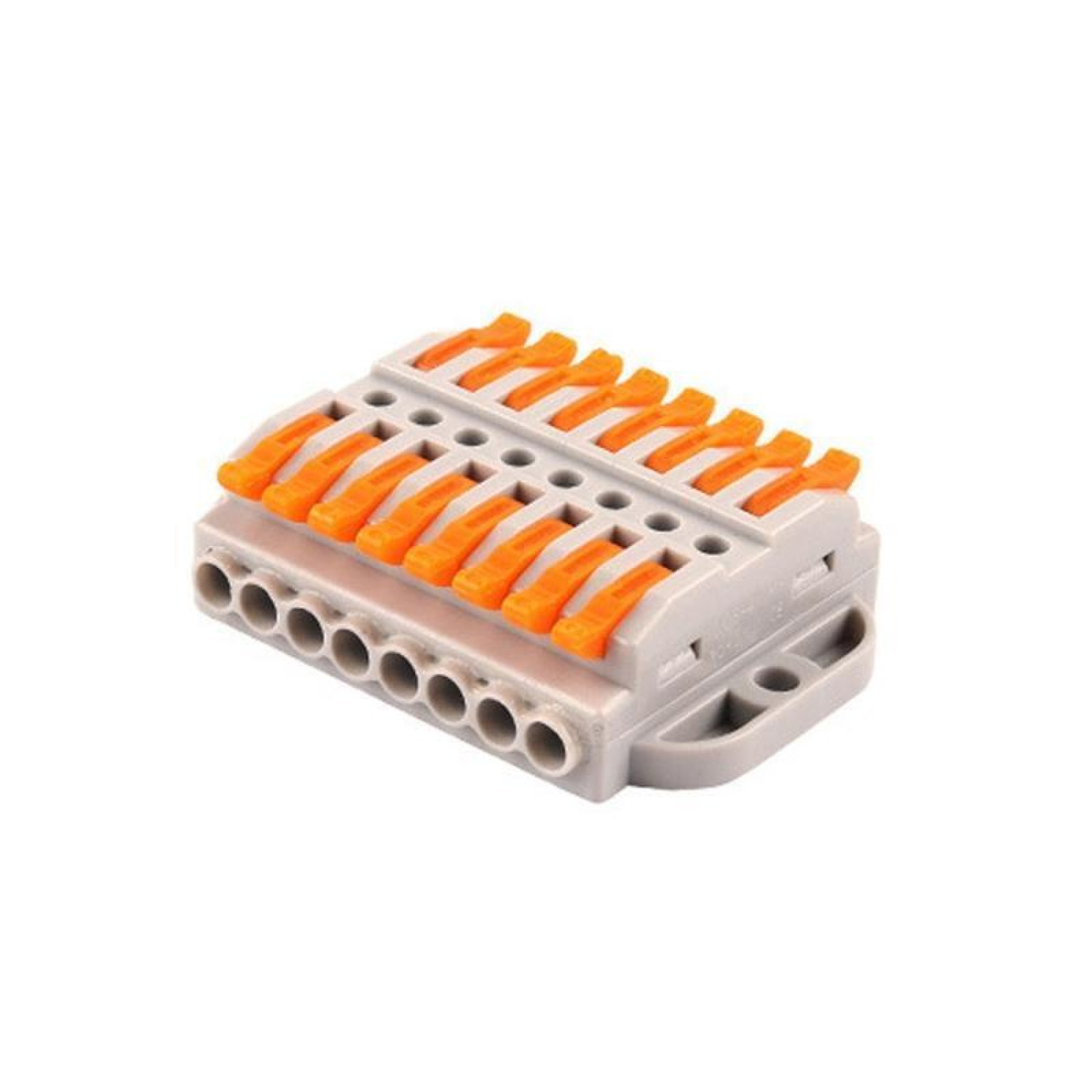

Product view

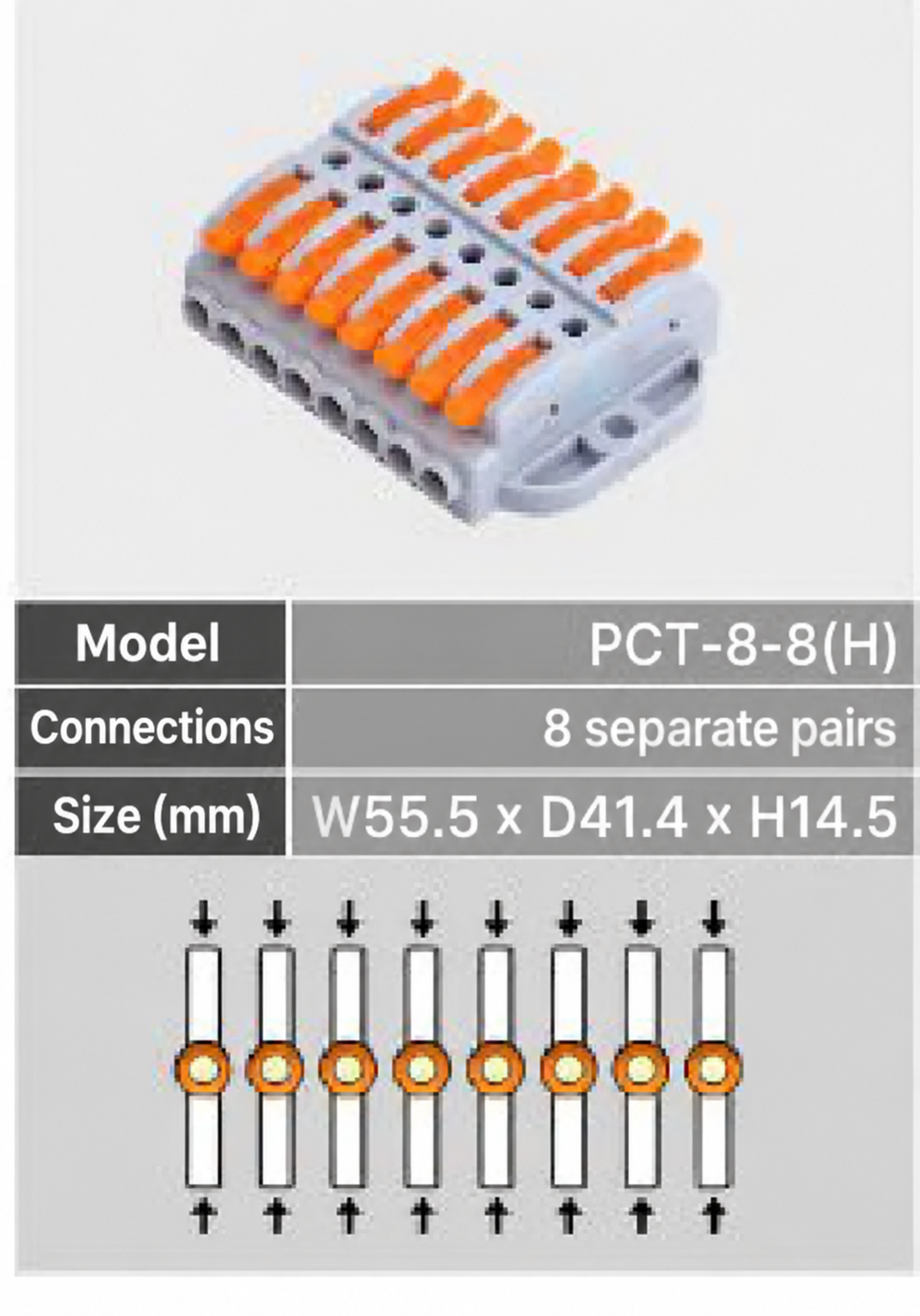

English catalogue reference
Practical features
- Opposed entry rows help keep incoming and outgoing wires neatly arranged.
- Individual levers provide access to the wire entries.
- Grouped layout keeps multiple wire-entry positions together in one connector.
Product details
| Detail | This variant |
|---|---|
| Series | SPL Series |
| Form | Inline lever connector |
| Entry layout | 8 positions at each end |
| Operation | Lever operated |
| Colour | Grey / orange |
| Pack quantity | 10 connectors |
| Catalogue reference | ID:26 |
Published reference specifications
CHIPSEN / Connectmall · PCT-8-8(H)
These are the published values for the reference model shown; NCMASTER stock equivalence remains to be confirmed.
| Specification | Published reference value |
|---|---|
| Width × depth × height | 55.5 × 41.4 × 14.5 mm |
| Rated current | 32 A |
| Rated voltage | 600 V |
| Wire cross-section | 0.08–4.0 mm² |
| Wire range (as printed) | AWG 28–12 |
| Current type | AC / DC |
| Mounting hole | Ø3.4 mm |
| Panel screw size | M3 |
| Reference connection layout | 8 paired connections |
Australia-wide supply from Melbourne
Stocked in Melbourne with delivery available across Victoria, New South Wales, Queensland, South Australia, Western Australia, Tasmania, the Australian Capital Territory and the Northern Territory.
Browse the NCMASTER wire connector range for other connector layouts and pack sizes.
