TBR16UU - 16mm Bearing Mount

TBR16UU - 16mm Bearing Mount
TBRXUU mount - NCMASTER draft

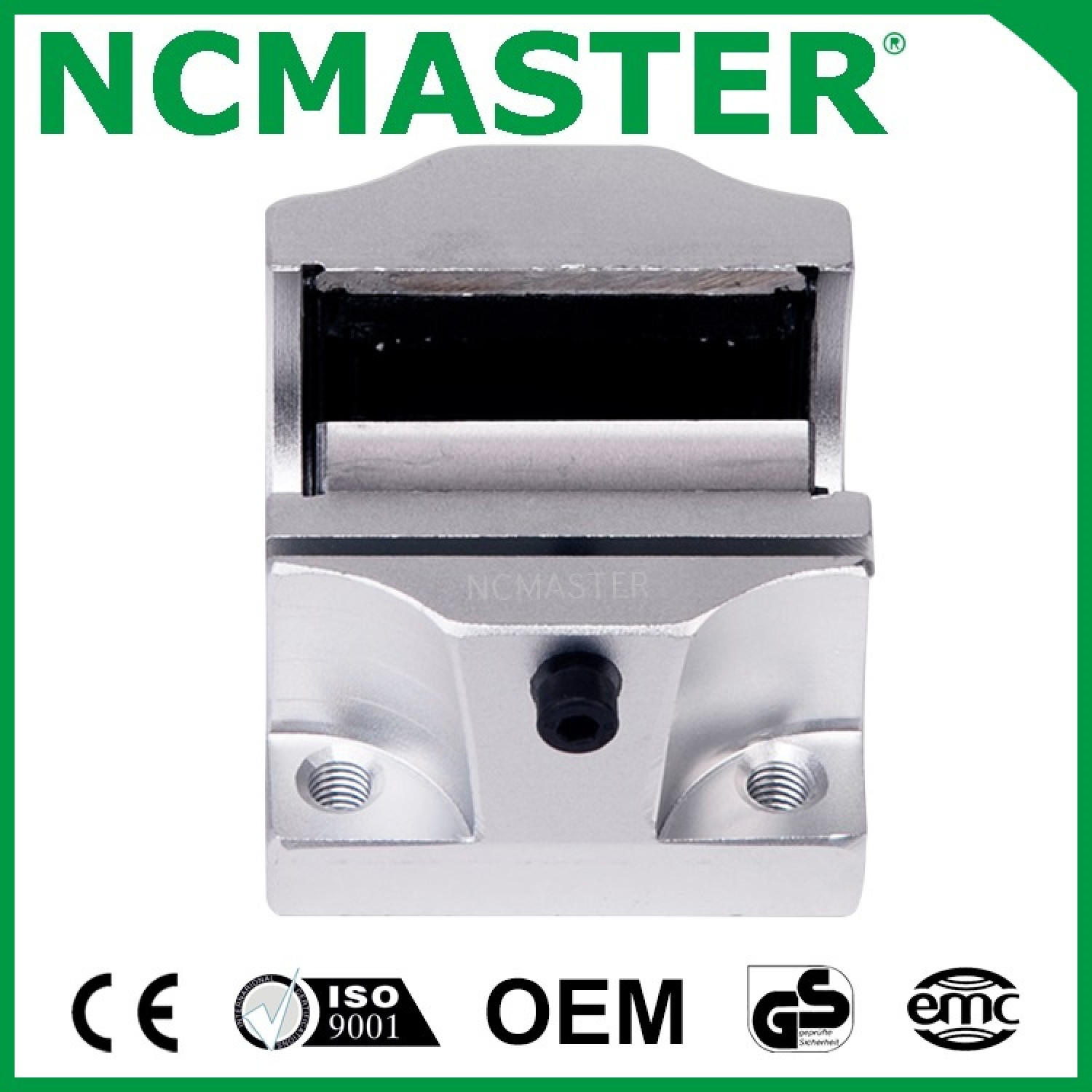

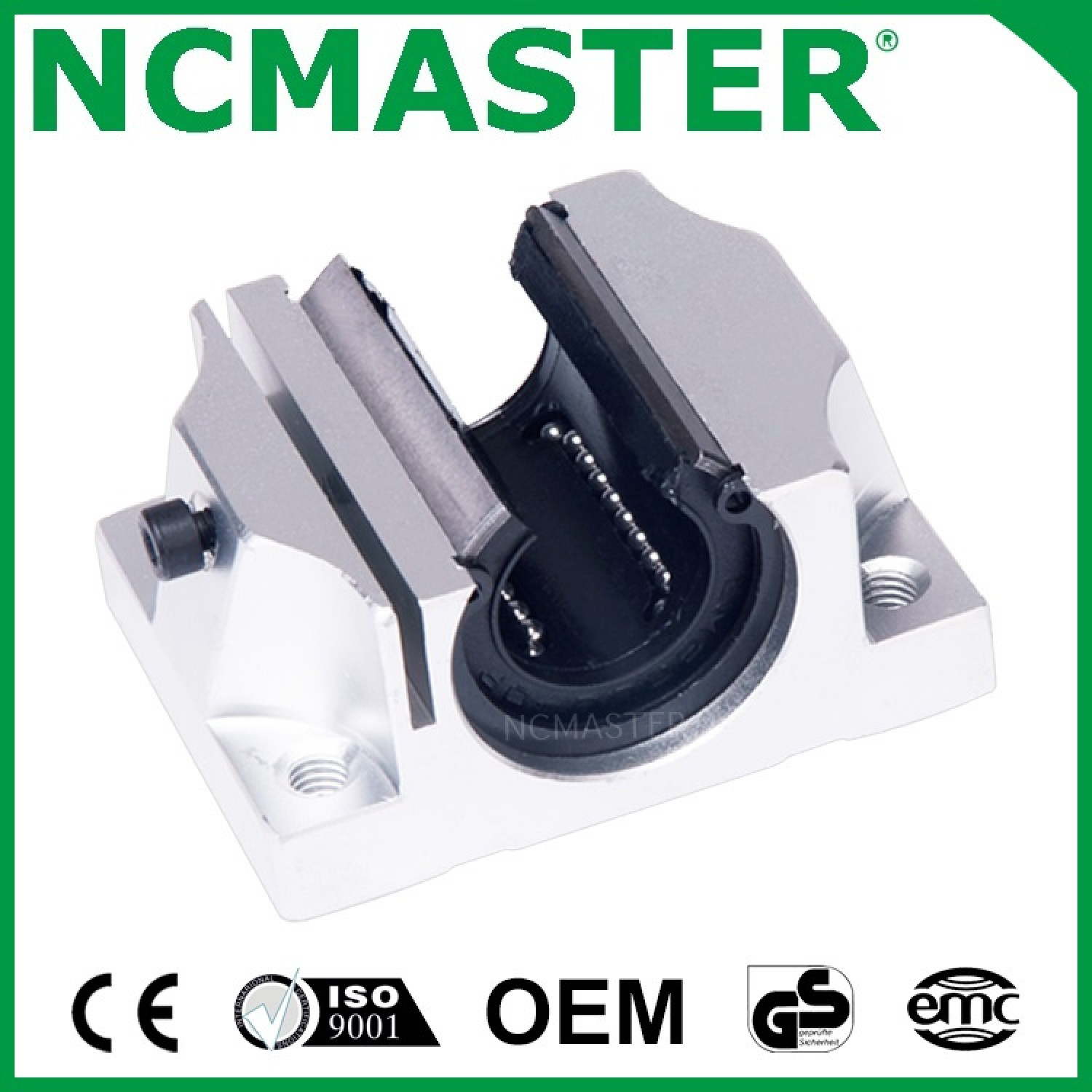

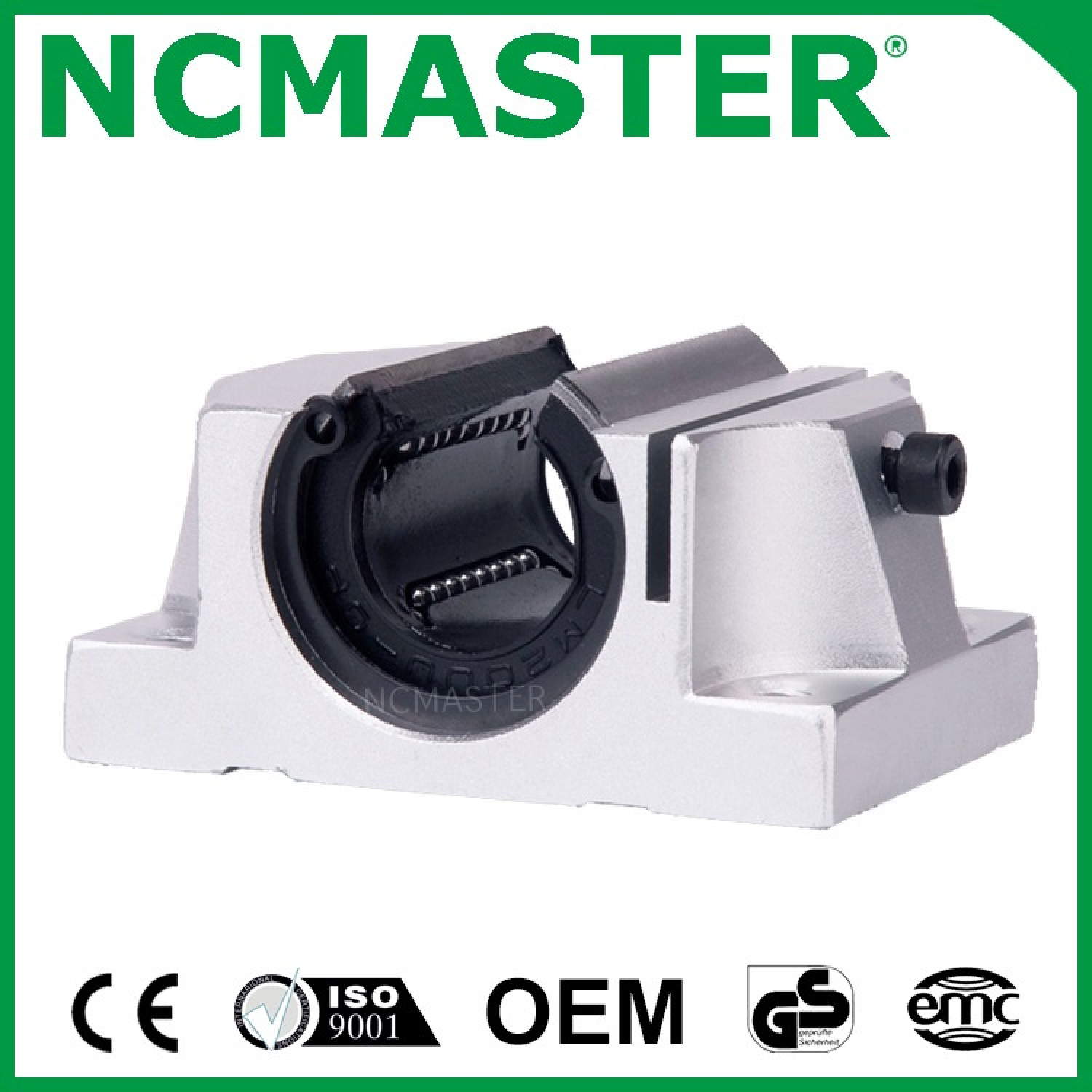

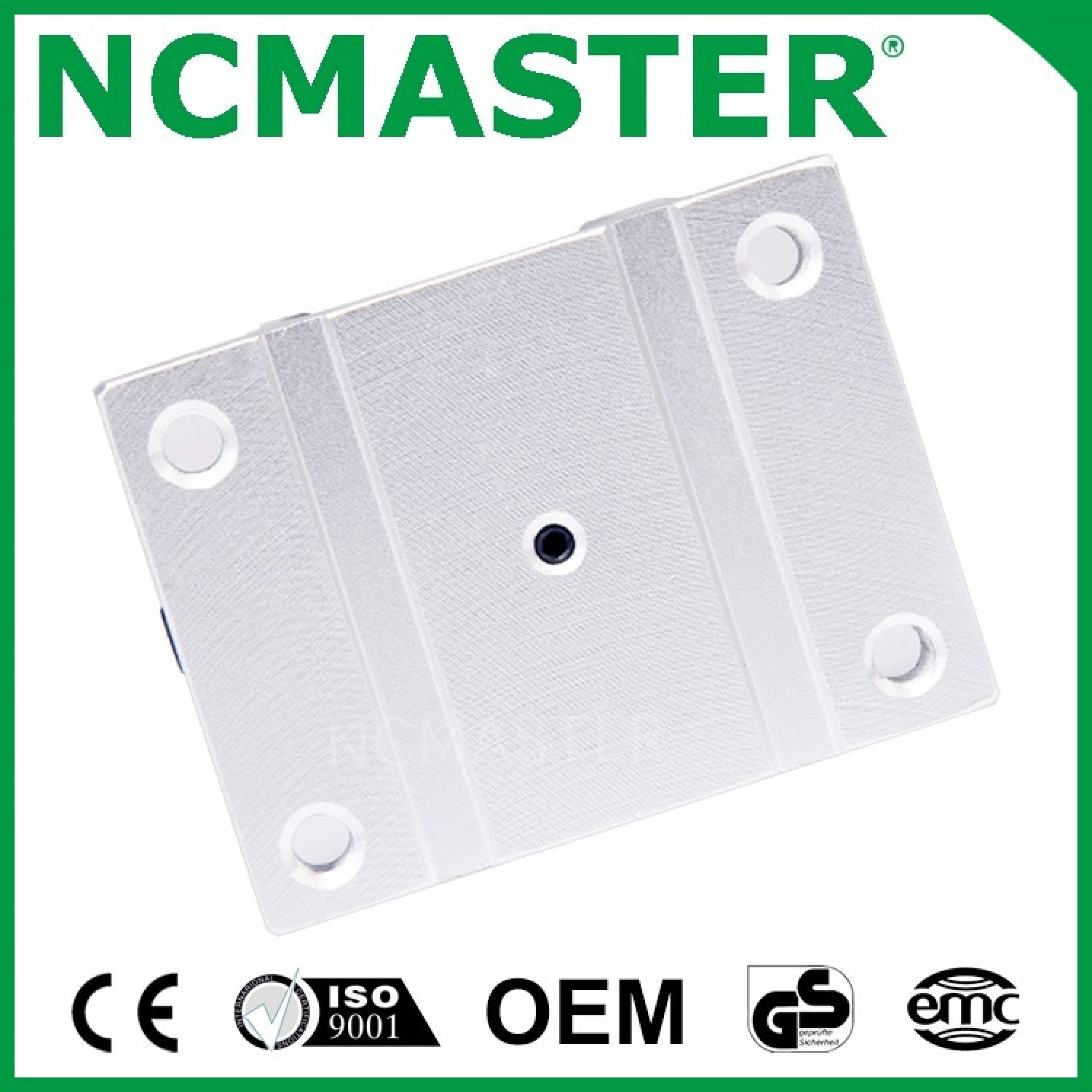

TBR16UU - 16mm Bearing Mount

A TBR linear-bearing mount for a matching TBR rail or supported shaft arrangement. This draft keeps the exact bearing size and mount family visible, while the supplied NCMASTER reference sheet remains the source for dimensions and catalogue load values.

TBR16UU16mm TBR short bearing mountMelbourne stock

TBR16UU quick reference

Approximate listing reference only. Verify the supplied item and the complete machine design before final fitment.

MODELTBR16UU
LISTED VARIANT16mm TBR short bearing mount
SOURCENCMASTER catalogue

TBRXUU mount reference sheet

Select the image for the full-size source reference. The image is supporting information; confirm the supplied part before ordering or installation.

TBR16UU - 16mm Bearing Mount NCMASTER reference sheet

Exact public title verified from the official NCMASTER TBRXUU Mount category. The supplied TBR data sheet is the dimensional and catalogue load reference; confirm the supplied mount and compatible rail before installation.

Selection and use

  • Match the bearing mount to the TBR rail diameter and the correct supported-rail arrangement. Confirm the supplied mount, rail fit, mounting clearance and application before installation.
  • Use the matching guide, shaft or carriage components shown by the family reference.
  • Keep the mounting surface aligned and suitably supported for the intended application.

Included in this draft listing

1 x TBR16UU - 16mm Bearing Mount

Package quantity and any separately supplied matching components must be confirmed against the live product record before publication.

Write a review

Please login or register to review
  • Views: 4444
  • Product Code: TBR16UU - 16MM BEARING MOUNT ID:1304
  • Availability: In Stock
  • $13.10
  • 2 or more $12.84
  • 4 or more $12.58
  • 6 or more $12.31
  • 10 or more $11.79
