TBR16 - 1500MM Linear Guide Rail

TBR16 - 1500MM Linear Guide Rail
TBRX rail - NCMASTER draft

TBR16 - 1500MM Linear Guide Rail

A TBR supported linear guide rail in the listed diameter and length. This draft keeps the exact rail length visible, while the supplied NCMASTER reference sheet remains the source for dimensions and catalogue load values.

TBR1616mm supported rail, 1500mm listed lengthMelbourne stock

TBR16 quick reference

Approximate listing reference only. Verify the supplied item and the complete machine design before final fitment.

MODELTBR16
LISTED VARIANT16mm supported rail, 1500mm listed length
SOURCENCMASTER catalogue

TBRX rail reference sheet

Select the image for the full-size source reference. The image is supporting information; confirm the supplied part before ordering or installation.

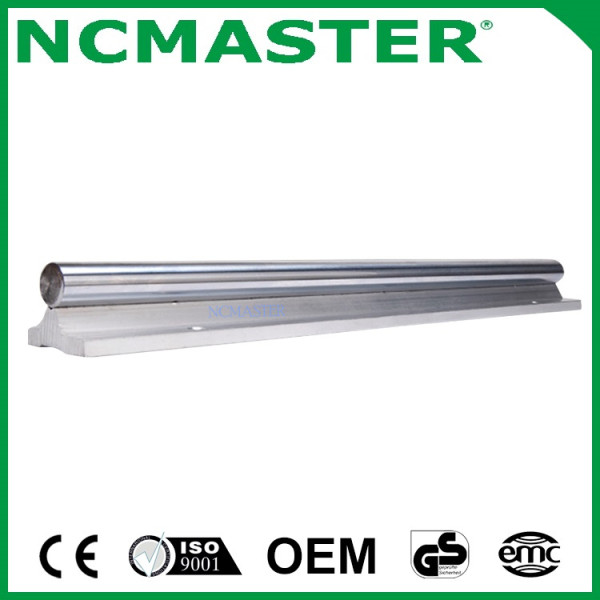

TBR16 - 1500MM Linear Guide Rail NCMASTER reference sheet

Exact public title verified from the official NCMASTER TBRX Rail category. The supplied TBR rail data sheet is the dimensional and rated-load reference; confirm the supplied length and package before installation.

Selection and use

  • Match the rail diameter and listed length to the compatible TBR bearing mount. Confirm the supplied rail, support spacing, mounting arrangement and application before installation.
  • Use the matching guide, shaft or carriage components shown by the family reference.
  • Keep the mounting surface aligned and suitably supported for the intended application.

Included in this draft listing

1 x TBR16 - 1500MM Linear Guide Rail

Package quantity and any separately supplied matching components must be confirmed against the live product record before publication.

Write a review

Please login or register to review
  • Views: 4263
  • Product Code: TBR16 - 1500MM LINEAR GUIDE RAIL ID:1293
  • Availability: In Stock
  • $128.60
