M5 × 25 mm T-Slot Drop-In Bolts for 3030 Profile — 50 Pack
-1500x1500.jpg "M5 × 25 mm T-Slot Drop-In Bolts for 3030 Profile — 50 Pack")
M5 × 25 mm T-Slot Drop-In Bolts for 3030 Profile — 50 Pack
Mount brackets, plates and accessories to compatible 3030 aluminium profiles with these M5 × 25 mm T-slot drop-in bolts. The shaped head engages beneath the channel lips while the threaded shank accepts a matching nut. Supplied as a 50-piece pack with a nickel-plated finish.
M5 × 25 mm quick reference
T-slot drop-in bolt

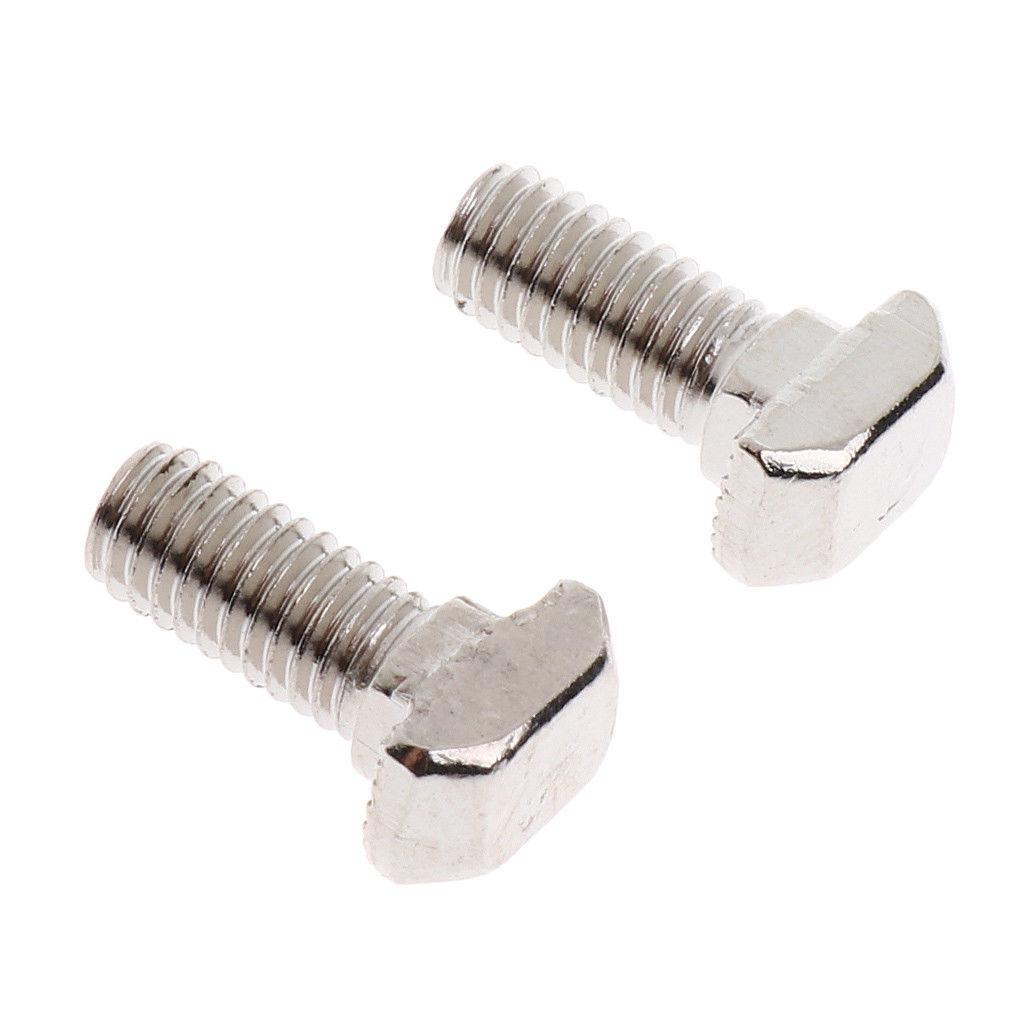

Original listing photograph showing the head and threaded shank.

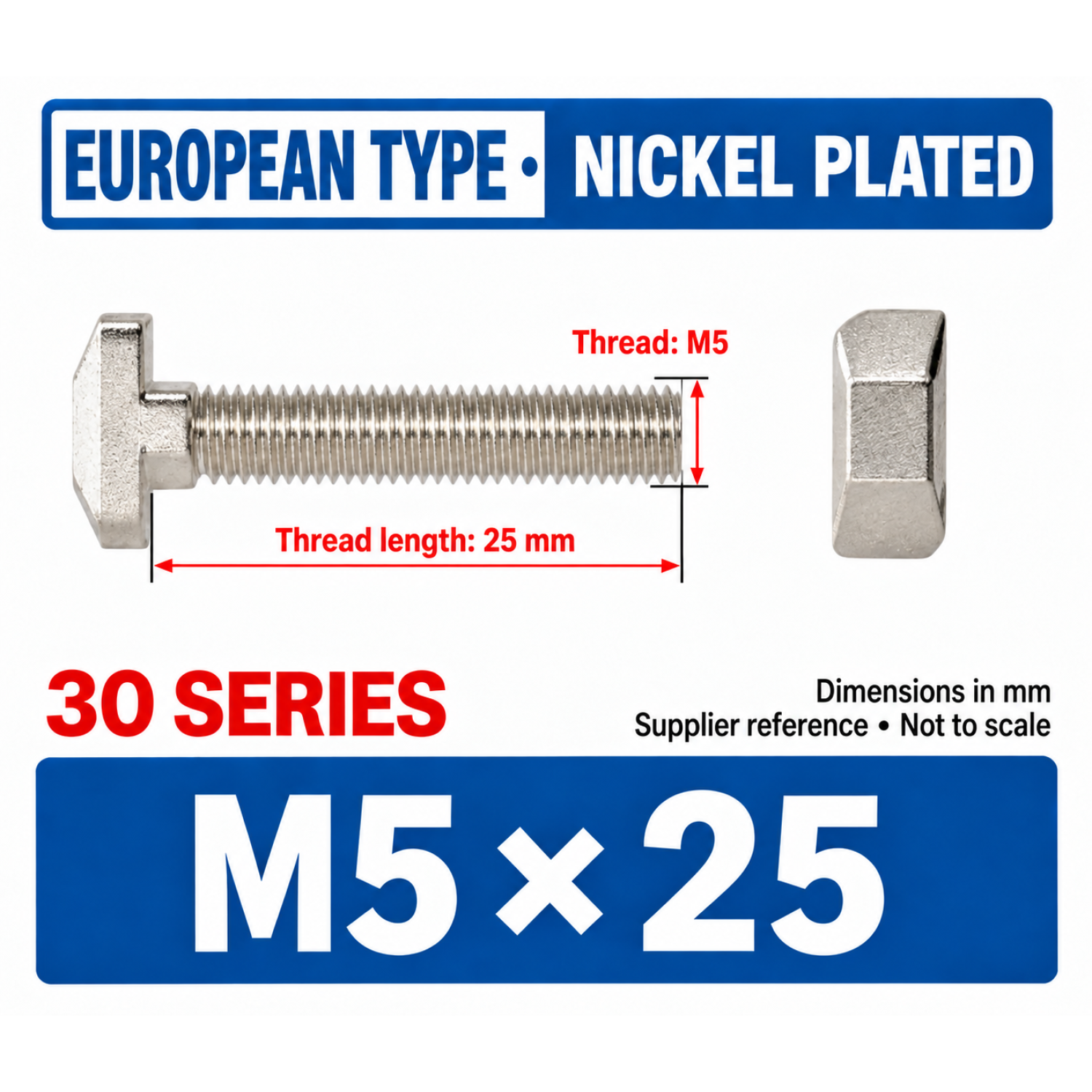

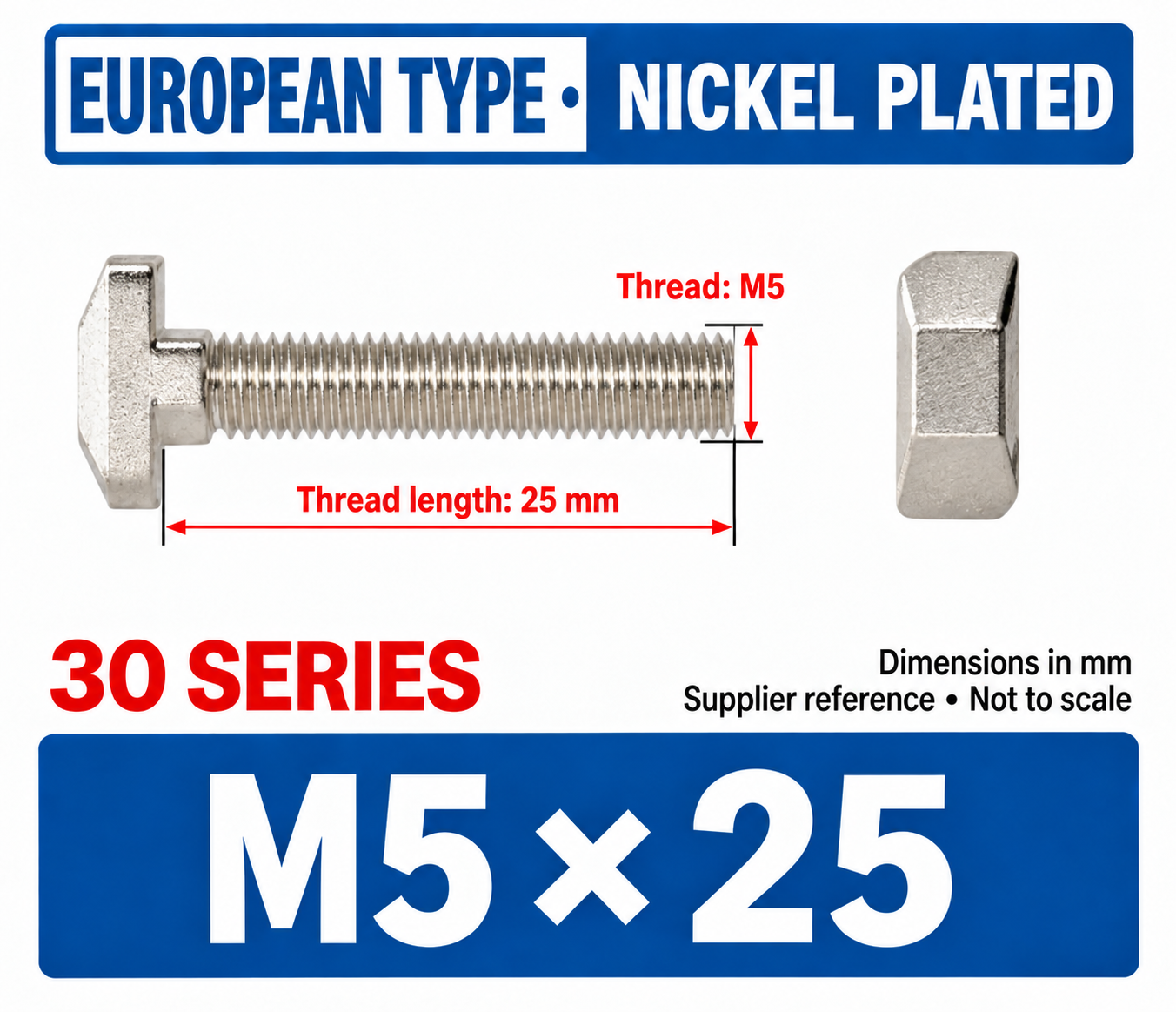

English dimensional drawing
Prepared for this exact M5 × 25 mm, 3030-profile listing.
Dimensions and listing specifications
All dimensions are in millimetres. L is the threaded length shown; T, L1 and W identify the head dimensions.
| Profile | Thread | Length L | Head thickness T | Head length L1 | Head width W | Finish | Pack |
|---|---|---|---|---|---|---|---|
| 3030 | M5 | 25 | — | — | — | Nickel plated | 50 pieces |
M5 thread, 25 mm length and 3030 profile designation follow this listing. Head dimensions are not specified.
Features and applications
- Drop-in head allows fittings to be added through a compatible accessible slot.
- Shaped head engages beneath the channel lips as the assembly is tightened.
- Useful for brackets, mounting plates and accessories on aluminium-extrusion frames.
- Nickel-plated finish for general workshop and equipment assembly.
Fitting the bolt
Insert the head through the compatible slot opening and turn it into engagement beneath the slot lips. Fit the bracket or plate and matching nut, check that the head is seated correctly, then tighten to suit the assembly.
Applications and supply
Use for compatible extrusion-frame brackets, machine guards, workbench accessories and mounting plates. Supplied by NCMASTER for workshop, CNC and automation projects with Australia-wide delivery.
