Switching Power Supply - 5V 10A 50W
5V 10A 50W — Switching Power Supply
A 5V DC switching power supply with a listed 10A output and 50W power rating. Use it as a dedicated supply for compatible 5V equipment in a correctly designed electrical enclosure.
Quick reference

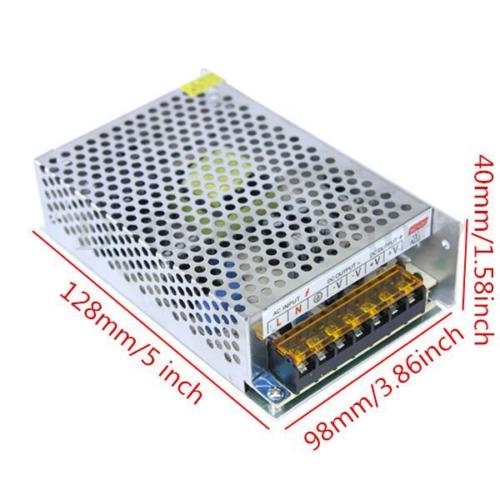

Product diagram & dimensions
Existing catalogue dimensional reference for the 5V 10A 50W supply. Dimensions are approximate; verify the supplied unit before preparing a mounting plate. Select the image to view it at full size.
5V control electronics
- Dedicated 5V DC output for equipment with matching input requirements.
- 10A listed output current helps compare the supply against the total connected load.
- Terminal-block connections suit installation within an equipment enclosure.
Technical specifications
| Specification | Details |
|---|---|
| Output voltage | 5V DC |
| Listed output current | 10A |
| Listed power rating | 50W |
| Supply type | AC-to-DC switching power supply |
| Connections | Terminal block; use the markings on the supplied unit |
Ratings are taken from the existing NCMASTER catalogue. Confirm the supplied unit label before installation; input configuration and operating limits must match the equipment.
Installation & supply
Installation should be carried out by a qualified electrician. Use a suitable enclosure and follow the unit markings for mains input, protective earth and output connections.
Power supply only. Any additional enclosure, mains lead, switch and installation hardware must be specified separately for the job.
NCMASTER Australia
Compare the NCMASTER power-supply range for other output ratings. See the live availability and delivery options on this product page.
- Views: 6445
-
- Product Code: SWITCHING POWER SUPPLY - 5V 10A 50W ID:187
- Availability: In Stock
- $12.30
- 2 or more $12.30
- 4 or more $12.30
- 6 or more $12.30
- 10 or more $12.30
