Switching Power Supply - 24V 15A 360W
24V 15A 360W — Switching Power Supply
A 24V DC switching power supply with a listed 15A output and 360W power rating. Use it as a dedicated supply for compatible 24V equipment in a correctly designed electrical enclosure.
Quick reference

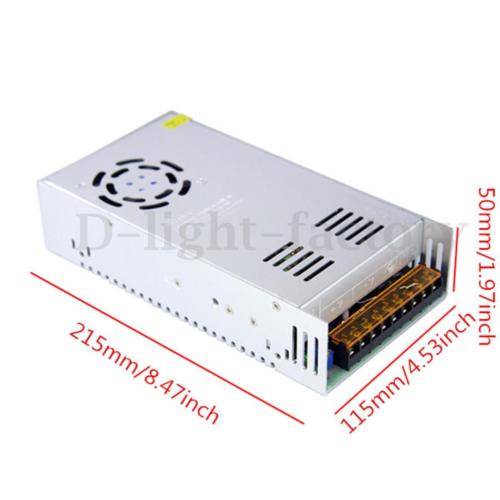

Product diagram & dimensions
Existing catalogue dimensional reference for the 24V 15A 360W supply. Dimensions are approximate; verify the supplied unit before preparing a mounting plate. Select the image to view it at full size.
24V control and automation equipment
- Dedicated 24V DC output for equipment with matching input requirements.
- 15A listed output current helps compare the supply against the total connected load.
- Terminal-block connections suit installation within an equipment enclosure.
Technical specifications
| Specification | Details |
|---|---|
| Output voltage | 24V DC |
| Listed output current | 15A |
| Listed power rating | 360W |
| Supply type | AC-to-DC switching power supply |
| Connections | Terminal block; use the markings on the supplied unit |
| AC input | 110/220V AC ±15% |
| Operating temperature | 0–40°C |
Ratings are taken from the existing NCMASTER catalogue. Confirm the supplied unit label before installation; input configuration and operating limits must match the equipment.
Installation & supply
Installation should be carried out by a qualified electrician. Use a suitable enclosure and follow the unit markings for mains input, protective earth and output connections.
Power supply only. Any additional enclosure, mains lead, switch and installation hardware must be specified separately for the job.
NCMASTER Australia
Compare the NCMASTER power-supply range for other output ratings. See the live availability and delivery options on this product page.
- Views: 7346
-
- Product Code: SWITCHING POWER SUPPLY - 24V 15A 360W ID:183
- Availability: In Stock
- $37.60
- 2 or more $36.85
- 4 or more $36.10
- 6 or more $35.34
- 10 or more $33.84
