Switching Power Supply - 12V 30A 360W
12V 30A 360W — Switching Power Supply
A 12V DC switching power supply with a listed 30A output and 360W power rating. Use it as a dedicated supply for compatible 12V equipment in a correctly designed electrical enclosure.
Quick reference

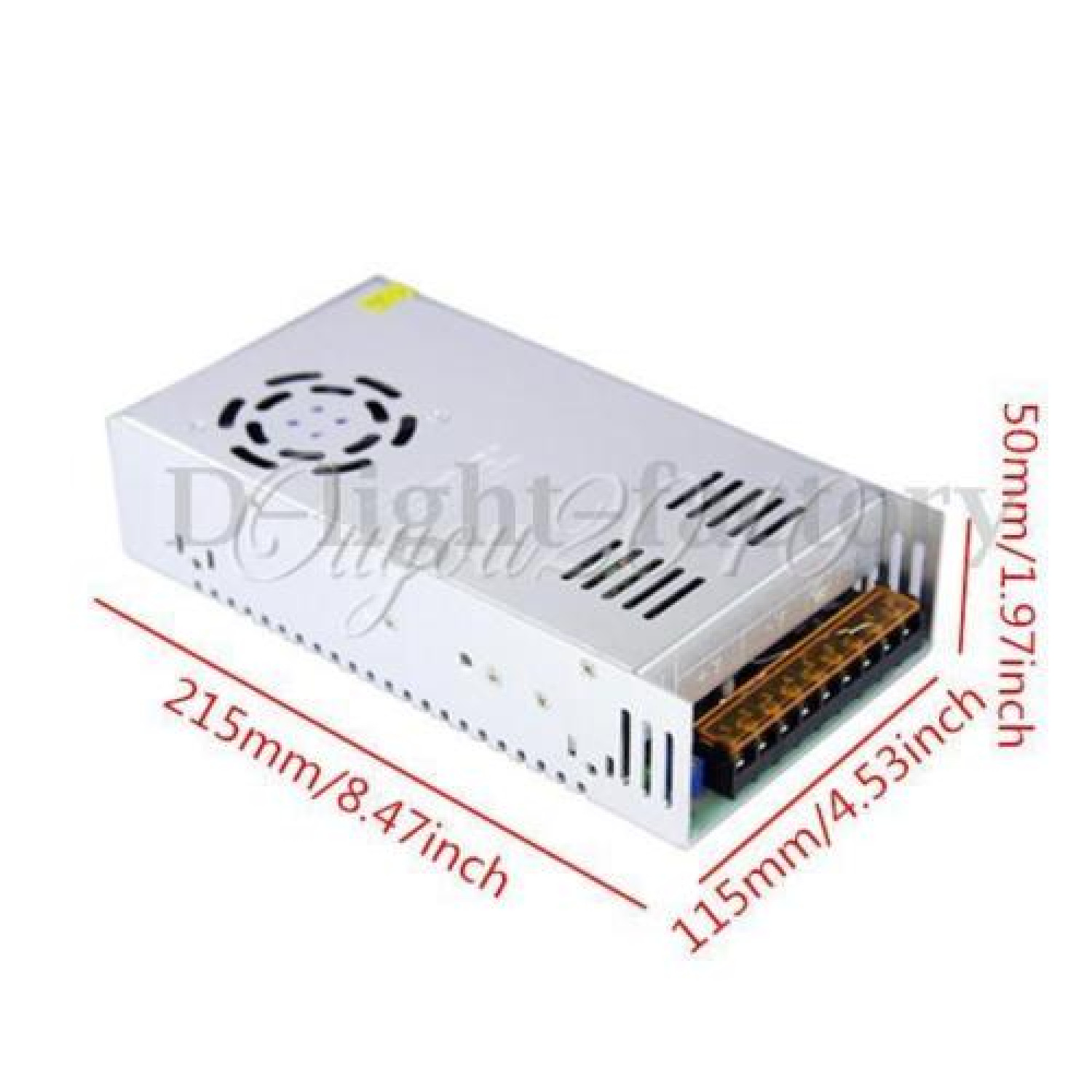

Product diagram & dimensions
Existing catalogue dimensional reference for the 12V 30A 360W supply. Dimensions are approximate; verify the supplied unit before preparing a mounting plate. Select the image to view it at full size.
12V equipment and control circuits
- Dedicated 12V DC output for equipment with matching input requirements.
- 30A listed output current helps compare the supply against the total connected load.
- Terminal-block connections suit installation within an equipment enclosure.
Technical specifications
| Specification | Details |
|---|---|
| Output voltage | 12V DC |
| Listed output current | 30A |
| Listed power rating | 360W |
| Supply type | AC-to-DC switching power supply |
| Connections | Terminal block; use the markings on the supplied unit |
| AC input | 100–120V AC / 200–240V AC |
| Catalogue size (approx.) | 214 × 113 × 50mm |
| Operating temperature | 0–40°C |
Ratings are taken from the existing NCMASTER catalogue. Confirm the supplied unit label before installation; input configuration and operating limits must match the equipment.
Installation & supply
Installation should be carried out by a qualified electrician. Use a suitable enclosure and follow the unit markings for mains input, protective earth and output connections.
Power supply only. Any additional enclosure, mains lead, switch and installation hardware must be specified separately for the job.
NCMASTER Australia
Compare the NCMASTER power-supply range for other output ratings. See the live availability and delivery options on this product page.
