SFU3210 - 1500mm End Machined Ballscrew Thread for BKBF25

SFU3210 - 1500mm End Machined Ballscrew Thread for BKBF25
SFU3210 end-machined ballscrew

SFU3210 1500mm End-Machined Ballscrew for BK25 / BF25 Supports

A 32mm diameter, 10mm lead ballscrew with both ends machined for matching BK25 and BF25 supports. Designed for accurate linear motion in CNC routers, mills, lathes and automation equipment.

32mm screw10mm lead1500mm lengthBK25 / BF25 endsMelbourne stock

SFU3210 quick reference

ModelSFU3210
Nominal diameter32mm
Lead10mm
Listed length1500mm
Support pairingBK25 / BF25

Features and applications

  • Professionally end-machined for matching BK25 and BF25 ballscrew supports.
  • Ready for CNC router, mill, lathe, 3D-printer and automation axis assemblies.
  • Suitable for X, Y or Z axis motion requiring a 32mm screw and 10mm lead.
  • Machined bearing and coupling ends reduce preparation work before assembly.

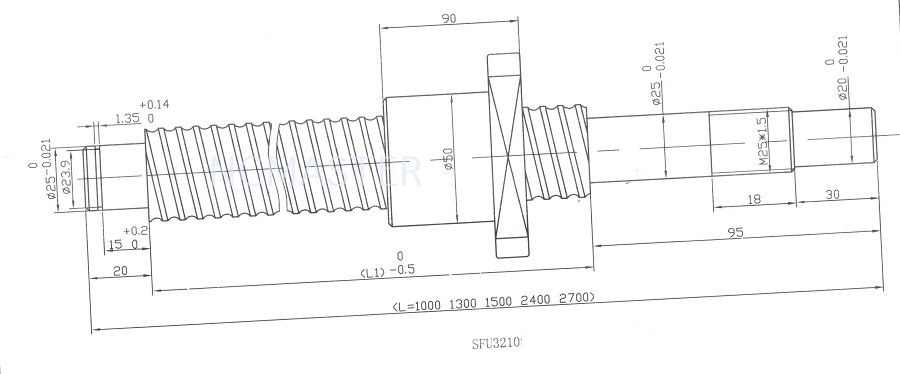

SFU3210 end-machining diagram

The first drawing shows the machined-end dimensions for this ballscrew series. The second sheet provides the matching SFU ball-nut reference.

SFU3210 ballscrew end-machining dimensions for BK25 and BF25 supports
SFU3210 end-machining dimensions
SFU ballscrew and ball-nut dimensional reference table
SFU ballscrew and ball-nut dimensional reference

Ordering note

This listing is for one 1500mm SFU3210 end-machined ballscrew. Ball nut, BK/BF supports and coupling are separate unless selected with the product.

Australia-wide supply

Stocked in Melbourne for delivery across Australia. Browse matching ballscrew components.

Package includes

1 x SFU3210 - 1500mm end-machined ballscrew for BK25 / BF25 supports

Write a review

Please login or register to review
  • Views: 3604
  • Product Code: SFU3210 - 1500MM END MACHINED BALLSCREW THREAD FOR BKBF25 ID:654
  • Availability: In Stock
  • $261.60
  • 2 or more $253.75
  • 4 or more $248.52
  • 6 or more $243.29

Tags: SFU3210, SFU3210 1500mm, end machined ballscrew, 32mm ballscrew, 10mm lead ballscrew, BK25, BF25, ballscrew Australia
