SFU2510 - 1700mm End Machined Ballscrew Thread for BKBF20

Out of Stock SFU2510 - 1700mm End Machined Ballscrew Thread for BKBF20
SFU2510 end-machined ballscrew

SFU2510 1700mm End-Machined Ballscrew for BK20 / BF20 Supports

A 25mm diameter, 10mm lead ballscrew with both ends machined for matching BK20 and BF20 supports. Designed for accurate linear motion in CNC routers, mills, lathes and automation equipment.

25mm screw10mm lead1700mm lengthBK20 / BF20 endsMelbourne stock

SFU2510 quick reference

ModelSFU2510
Nominal diameter25mm
Lead10mm
Listed length1700mm
Support pairingBK20 / BF20

Features and applications

  • Professionally end-machined for matching BK20 and BF20 ballscrew supports.
  • Ready for CNC router, mill, lathe, 3D-printer and automation axis assemblies.
  • Suitable for X, Y or Z axis motion requiring a 25mm screw and 10mm lead.
  • Machined bearing and coupling ends reduce preparation work before assembly.

SFU2510 end-machining diagram

The first drawing shows the machined-end dimensions for this ballscrew series. The second sheet provides the matching SFU ball-nut reference.

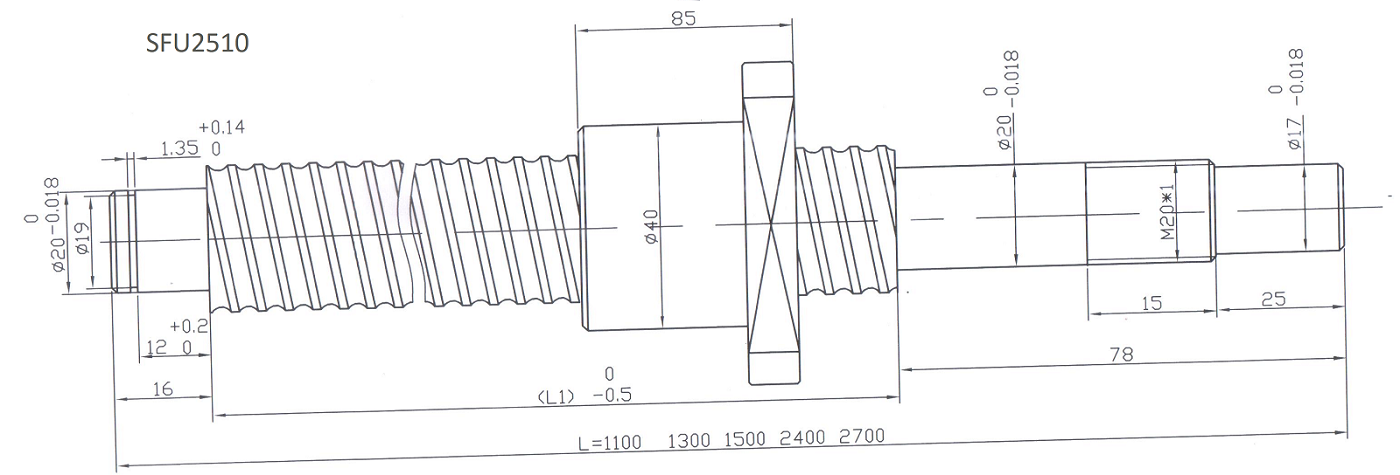

SFU2510 ballscrew end-machining dimensions for BK20 and BF20 supports
SFU2510 end-machining dimensions

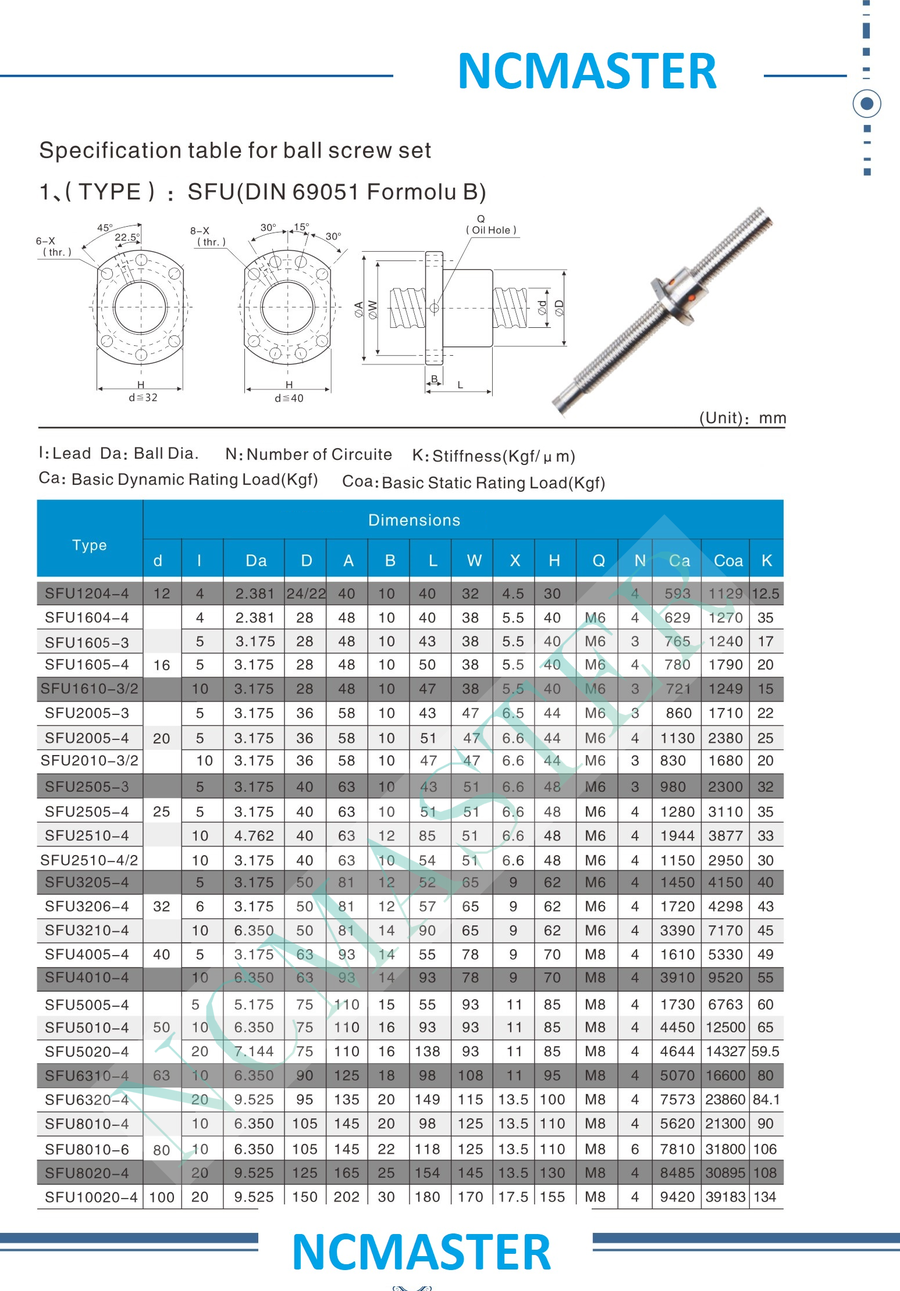

SFU ballscrew and ball-nut dimensional reference table
SFU ballscrew and ball-nut dimensional reference

Ordering note

This listing is for one 1700mm SFU2510 end-machined ballscrew. Ball nut, BK/BF supports and coupling are separate unless selected with the product.

Australia-wide supply

Stocked in Melbourne for delivery across Australia. Browse matching ballscrew components.

Package includes

1 x SFU2510 - 1700mm end-machined ballscrew for BK20 / BF20 supports

Write a review

Please login or register to review
  • Views: 2782
  • Product Code: SFU2510 - 1700MM MACHINED BALLSCREW THREAD FOR BKBF20 ID:1428
  • Availability: Out of Stock
  • $181.20
  • 2 or more $175.76
  • 4 or more $172.14
  • 6 or more $168.52

Tags: SFU2510, SFU2510 1700mm, end machined ballscrew, 25mm ballscrew, 10mm lead ballscrew, BK20, BF20, ballscrew Australia
