SFU1605 - 1800mm Ballscrew End Machined Thread for BKBF12
-1500x1500.jpg "SFU1605 - 1800mm Ballscrew End Machined Thread for BKBF12")
Click Image for Gallery
-1500x1500.jpg "SFU1605 - 1800mm Ballscrew End Machined Thread for BKBF12")
SFU1605 1800mm End-Machined Ballscrew for BK12 / BF12 Supports
A 16mm diameter, 5mm lead ballscrew with both ends machined for matching BK12 and BF12 supports. Designed for accurate linear motion in CNC routers, mills, lathes and automation equipment.
16mm screw5mm lead1800mm lengthBK12 / BF12 endsMelbourne stock
SFU1605 quick reference
ModelSFU1605
Nominal diameter16mm
Lead5mm
Listed length1800mm
Support pairingBK12 / BF12
Features and applications
- Professionally end-machined for matching BK12 and BF12 ballscrew supports.
- Ready for CNC router, mill, lathe, 3D-printer and automation axis assemblies.
- Suitable for X, Y or Z axis motion requiring a 16mm screw and 5mm lead.
- Machined bearing and coupling ends reduce preparation work before assembly.

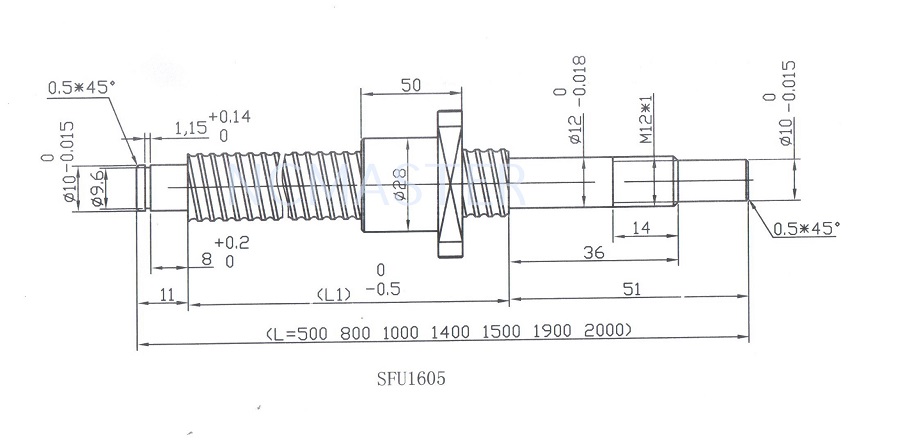

SFU1605 end-machining diagram
The first drawing shows the machined-end dimensions for this ballscrew series. The second sheet provides the matching SFU ball-nut reference.
Australia-wide supply
Stocked in Melbourne for delivery across Australia. Browse matching ballscrew components.
Package includes
1 x SFU1605 - 1800mm end-machined ballscrew for BK12 / BF12 supports
