SFU Ballscrew Housing DSG12H - 12mm

SFU Ballscrew Housing DSG12H - 12mm
Ballscrew drive component

SFU Ballscrew Housing DSG12H - 12mm

A machined aluminium housing that secures a compatible 12mm ball nut to a gantry plate or moving carriage. Threaded mounting holes simplify installation and help keep the ball nut firmly supported and aligned.

DSG12HCompatible SFU1204 ball nutMachined aluminiumThreaded mounting holesMelbourne stock

DSG12H quick reference

Check the supplied ball-nut flange and mounting pattern before installation.

MODELDSG12H
BALL NUTSFU1204
W x L x F35 x 36 x 50mm
BORE D22.1 / 24.1mm
MOUNTINGS1 M4 / S2 M5

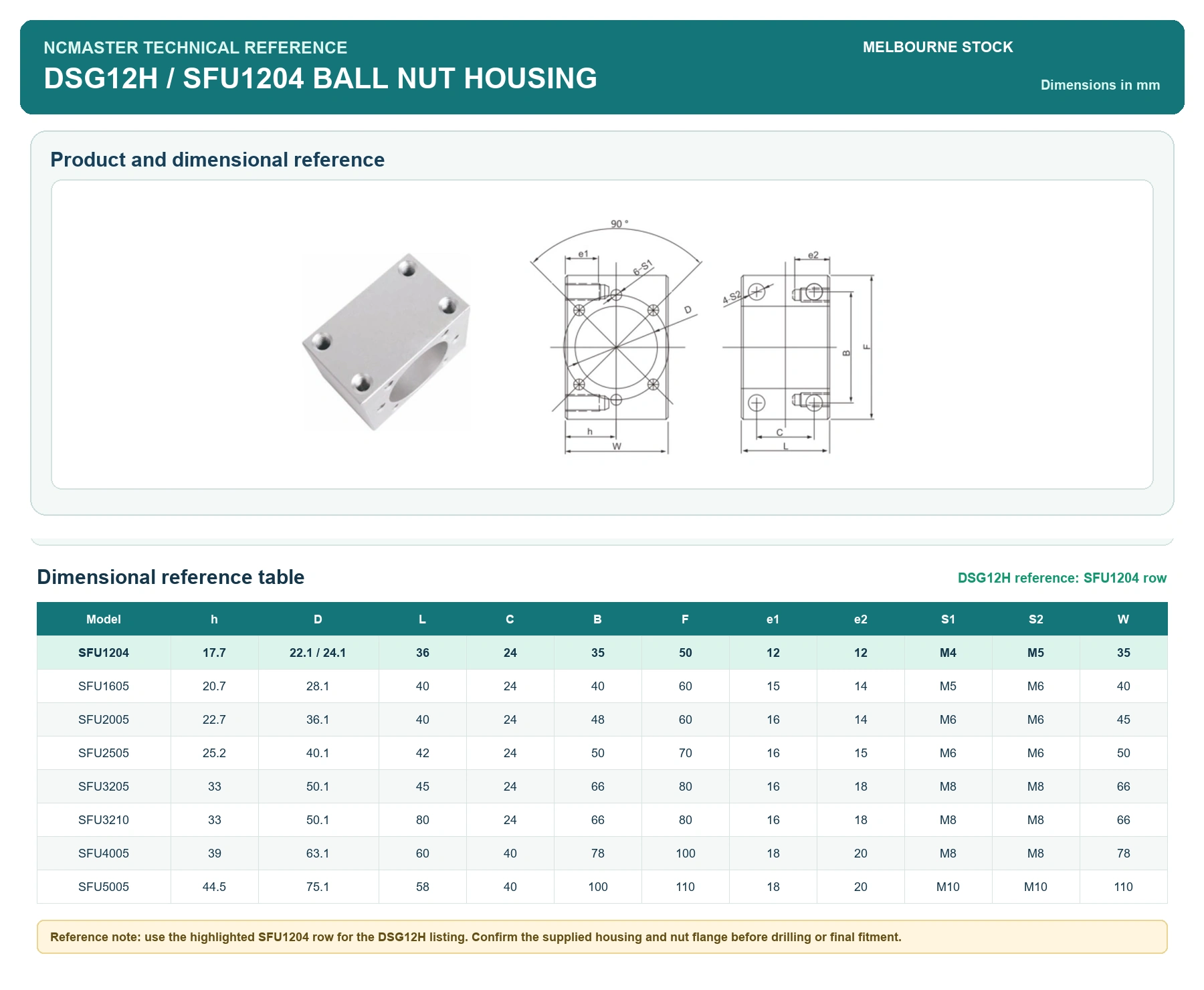

NCMASTER DSG12H English dimensional data sheet

Select the sheet to enlarge it. The highlighted SFU1204 row is the dimensional reference for this DSG12H housing.

NCMASTER DSG12H and SFU1204 ball nut housing English dimensional data sheet

Where it is used

  • Secures a compatible 12mm ball nut to a gantry plate or moving carriage.
  • Threaded holes allow the ball nut to fasten directly into the housing.
  • Suitable for CNC, automation and other ballscrew-driven linear motion assemblies.

Ordering note

One DSG12H housing for a compatible SFU1204 ball nut. Confirm the ball-nut flange and mounting pattern before ordering.

Australia-wide delivery

Dispatched from Melbourne to Victoria, New South Wales, Queensland, South Australia, Western Australia, Tasmania, the ACT and Northern Territory.

Package includes

1 x SFU Ballscrew Housing DSG12H - 12mm

Write a review

Please login or register to review
  • Views: 4554
  • Product Code: SFU BALLSCREW HOUSING DSG12H - 12MM ID:1391
  • Availability: In Stock
  • $15.60
  • 4 or more $15.29
  • 8 or more $14.98
  • 12 or more $14.66
