A 1200mm supported round-shaft guide rail for compatible 16mm SBR bearing carriages. The aluminium support profile helps the shaft remain supported along its travel length.
16mm supported shaft1200mm length150mm support pitchMelbourne stock
SBR16-1200mm at a glance
Approximate dimensions
Shaft diameter16mm
Rail length1200mm
Rail profile W × H45 × 45mm
Support pitch P150mm
Matching carriageSBR16UU
Approx. weight per metre2.55kg/m
NCMASTER SBR supported-rail English data sheet

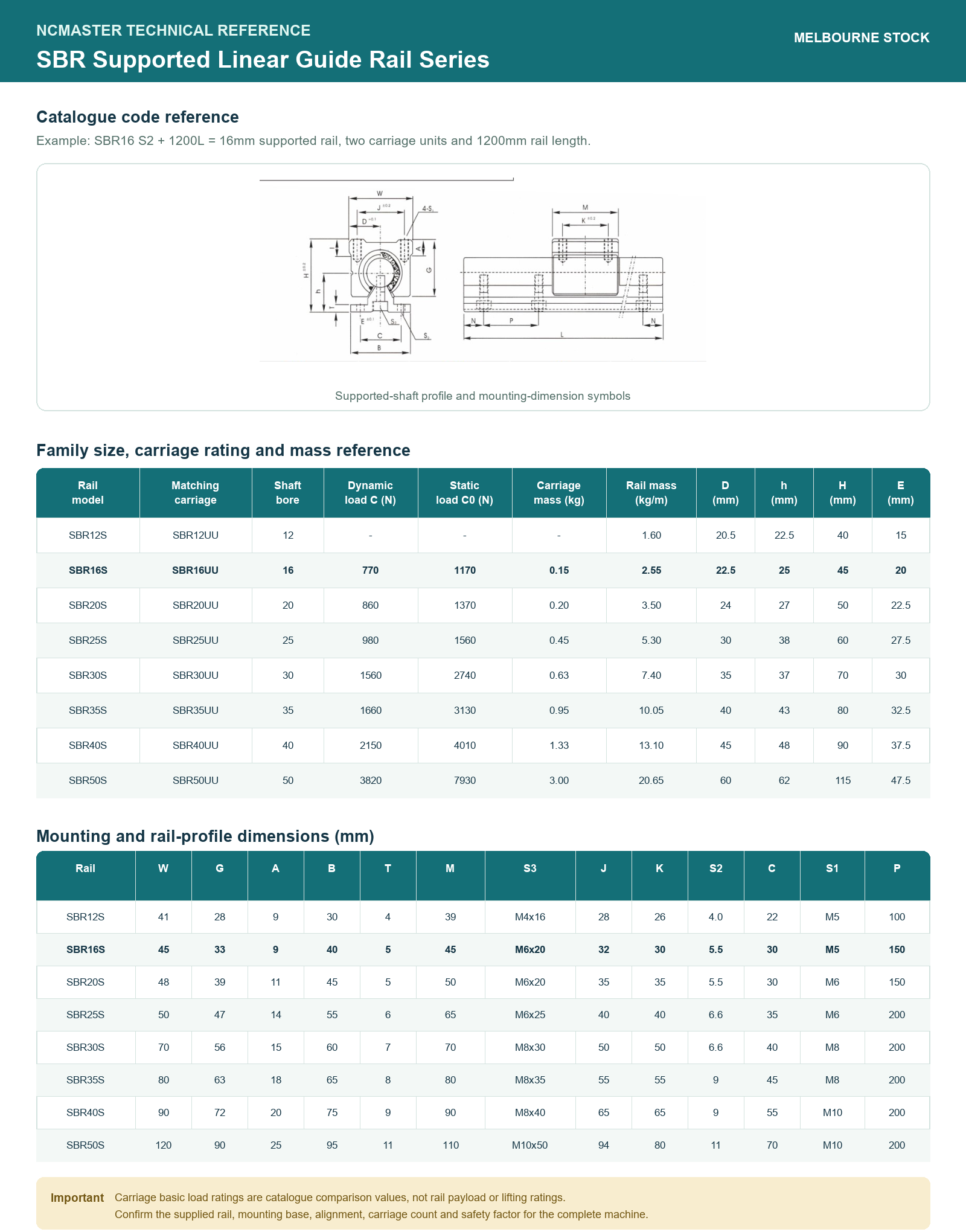

The complete English reference below preserves the supplier drawing symbols, family dimensions, carriage basic-load ratings and rail mass data without the original Chinese headings. Select it to open the full-size sheet.
Reference only: These ratings apply to the matching carriage, not the rail as a standalone payload. System capacity depends on rail spacing, carriage count, mounting, speed and shock.
Where SBR16 supported rail is used
Provides a supported 16mm round-shaft track for compatible open SBR bearing carriages.
Continuous aluminium support helps reduce shaft deflection compared with an unsupported shaft of the same span.
Suitable for CNC, automation, positioning, cutting and material-handling assemblies.
Use the matching SBR16UU carriage and align parallel rails before tightening the mounting hardware.
Ordering note
Includes one SBR16 supported linear guide rail, 1200mm long. Matching SBR16UU carriages and installation hardware are sold separately unless selected with this product.
