Proximity Sensor LJ12A3BX - NPN
Click Image for Gallery
Proximity Sensor LJ12A3BX - NPN
| Product Name | Inductive Proximity Switch |
| Model | LJ12A3-4-Z/BX |
| Theory | Inductive Sensor |

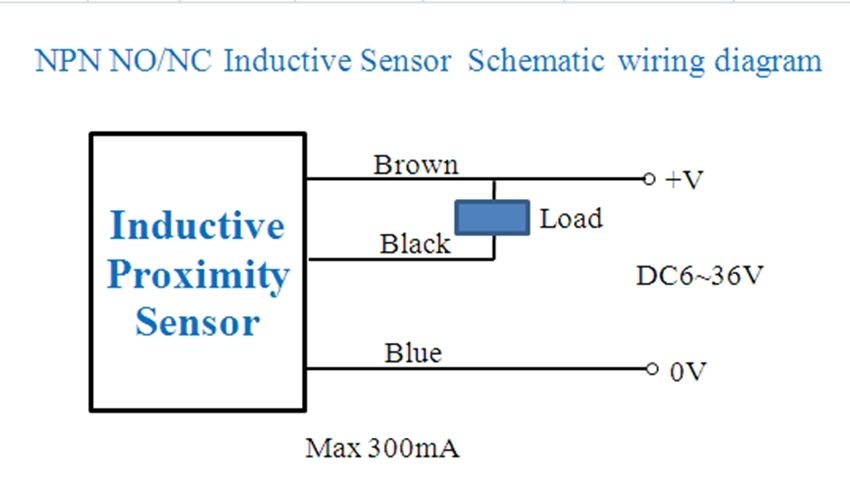

| Wire Type | 3 Wire Type (Brown, Blue, Black) |
| Switch Appearance Type | Block Type, Aluminum Shell |
| Output Type | NPN NO(normally open) |
| Detecting Distance | 4mm |
| Supply Voltage | 6-36VDC |
| Detect Object | Iron |
| Diameter | 12mm |
| Cable Length | 1M/3.3Ft |
This Package included the following:
1x Proximity Sensor LJ12A3BX - NPN
- Views: 2302
- Product Code: PROXIMITY SENSOR LJ12A3BX - NPN ID:1096
- Availability: In Stock
- $11.20
- 2 or more $9.78
- 4 or more $10.86
- 6 or more $10.64
Tags: Proximity Sensor NPN DC6V-36V
