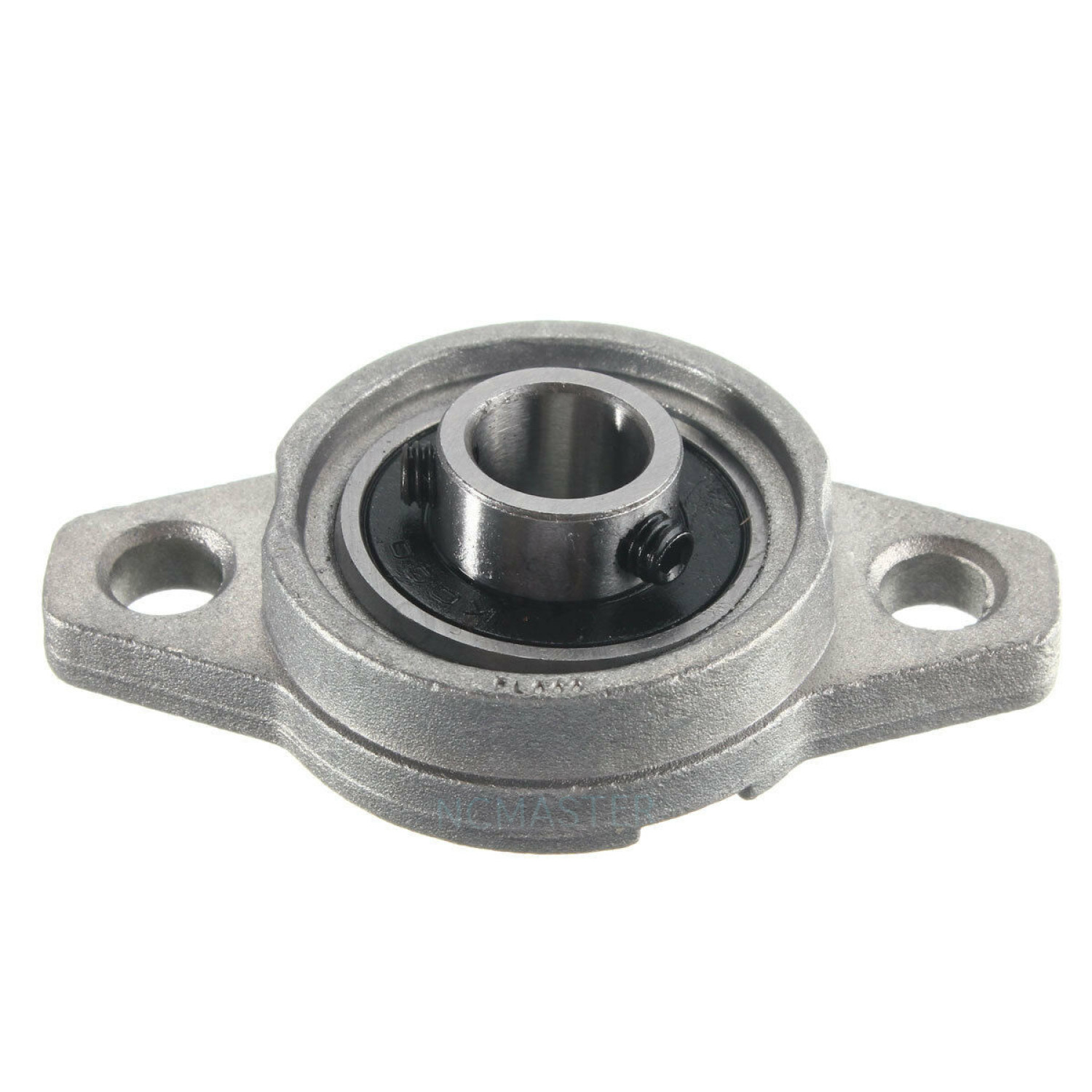

KFL000 - 10mm Pillow Metal Bearing Block
KFL000 - 10mm Pillow Metal Bearing Block
A KFL pillow-style metal bearing block for a matching round shaft. This draft keeps the exact bore designation visible while the supplied NCMASTER KFL data sheet remains the source for dimensions and bearing-unit details.
KFL000 quick reference
Approximate listing reference only. Verify the supplied item and the complete machine design before final fitment.

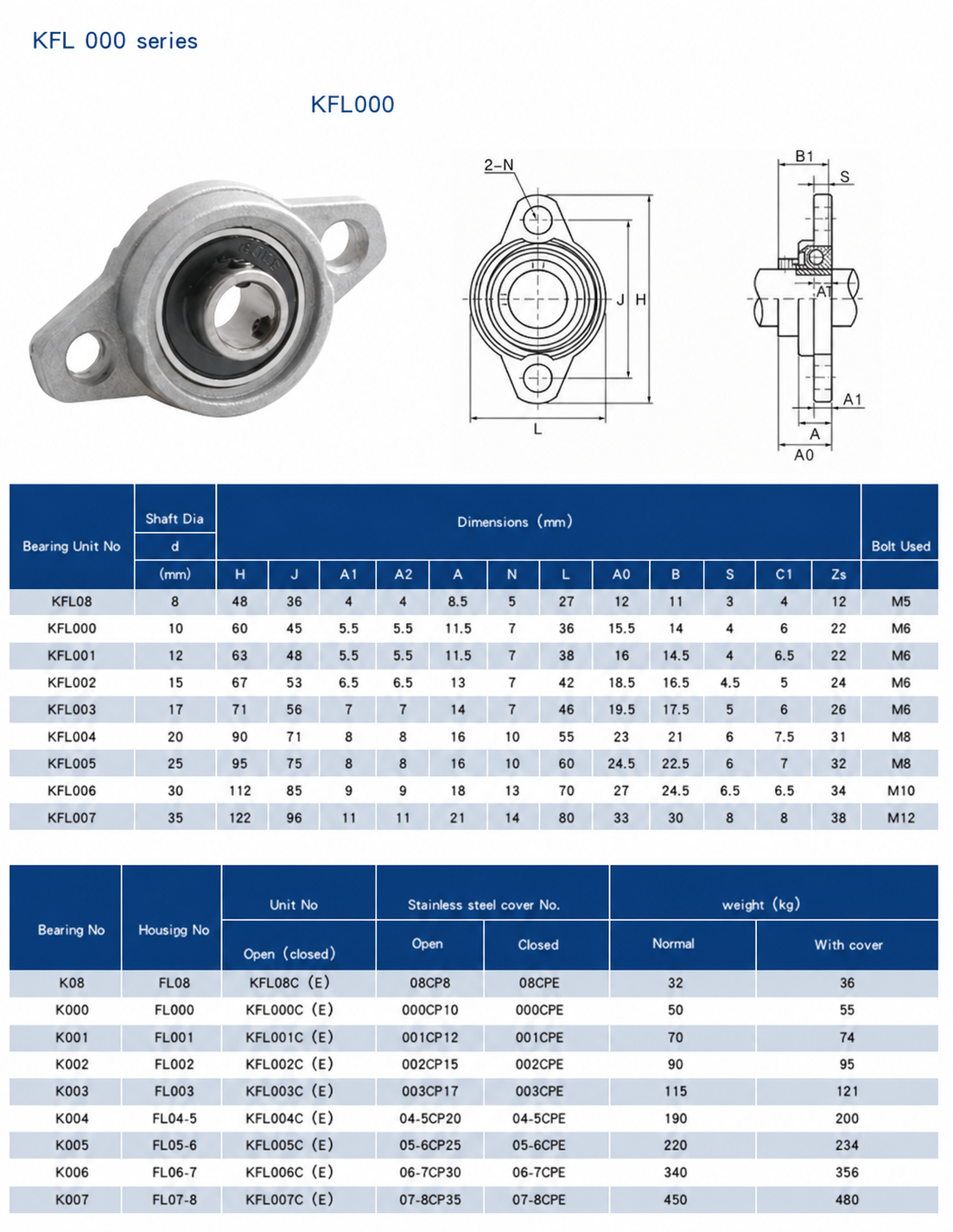

KFL pillow bearing reference sheet
Select the image for the full-size source reference. The image is supporting information; confirm the supplied part before ordering or installation.
Exact public title verified from the official NCMASTER KFL Pillow Bearing category. The local KFL data sheet is the dimensional and bearing-unit reference; confirm the supplied unit and shaft fit before publication.
Selection and use
- Match the KFL bearing bore to the round shaft diameter. Confirm the mounting-hole arrangement, shaft fit, alignment and supplied unit before installation.
- Use the matching guide, shaft or carriage components shown by the family reference.
- Keep the mounting surface aligned and suitably supported for the intended application.
Ordering note
One KFL000 pillow bearing block with a 10mm bore. Confirm the shaft size and mounting pattern before ordering.
Australia-wide delivery
Dispatched from Melbourne to Victoria, New South Wales, Queensland, South Australia, Western Australia, Tasmania, the ACT and Northern Territory.
Included in this draft listing
1 x KFL000 - 10mm Pillow Metal Bearing Block
Package quantity and any separately supplied matching components must be confirmed against the live product record before publication.
