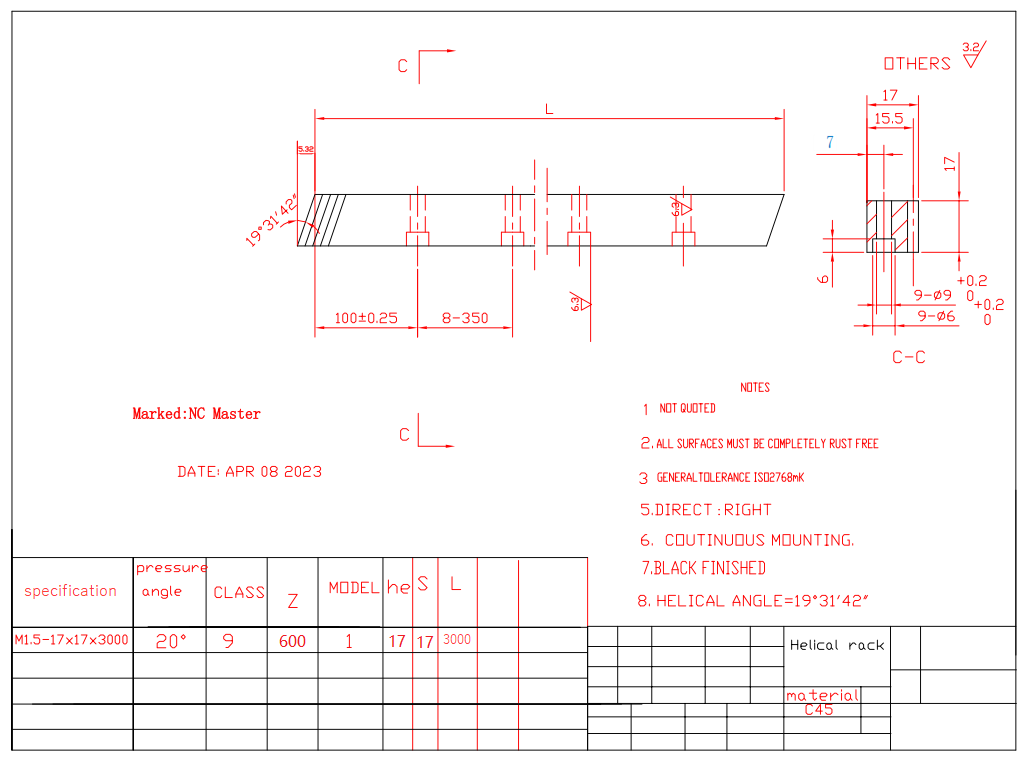

Helical Mod 1.5 - 3000mm Rack System

Helical Mod 1.5 - 3000mm Rack System

Helical Mod 1.5 - 3000mm Rack System




The material is C45 similar to CK1045, K1045, etc -  It is a heat treatment material suitable for tooling applications, etc.
Tinions are sold separately.

We have the capability to premanufacture our products with exact measurements of 1000mm, 1500mm, and 2000mm.

However, it is crucial to consider that a loss of 3mm may occur during the cutting process due to the cutting blade.

Improvements:

(2022) Changed hole location to the side of the rack instead of the bottom with countersunk
(2020)The rack is blackened to add resistance to rust.
(2020 )Various thread hole intervals were added.

A possible future improvement is to get it manufactured at 3500mm





This Package included the following:
1x Helical Mod 1.5 - 3000mm Rack System

Write a review

Please login or register to review
  • Views: 11604
  • Product Code: HELICAL MOD 1.5 - 3000MM RACK SYSTEM ID:1099
  • Availability: In Stock
  • $192.20
  • 2 or more $186.43
  • 4 or more $182.59
  • 6 or more $178.75
