Helical Mod 1.5 - 1500mm Rack System
Click Image for Gallery

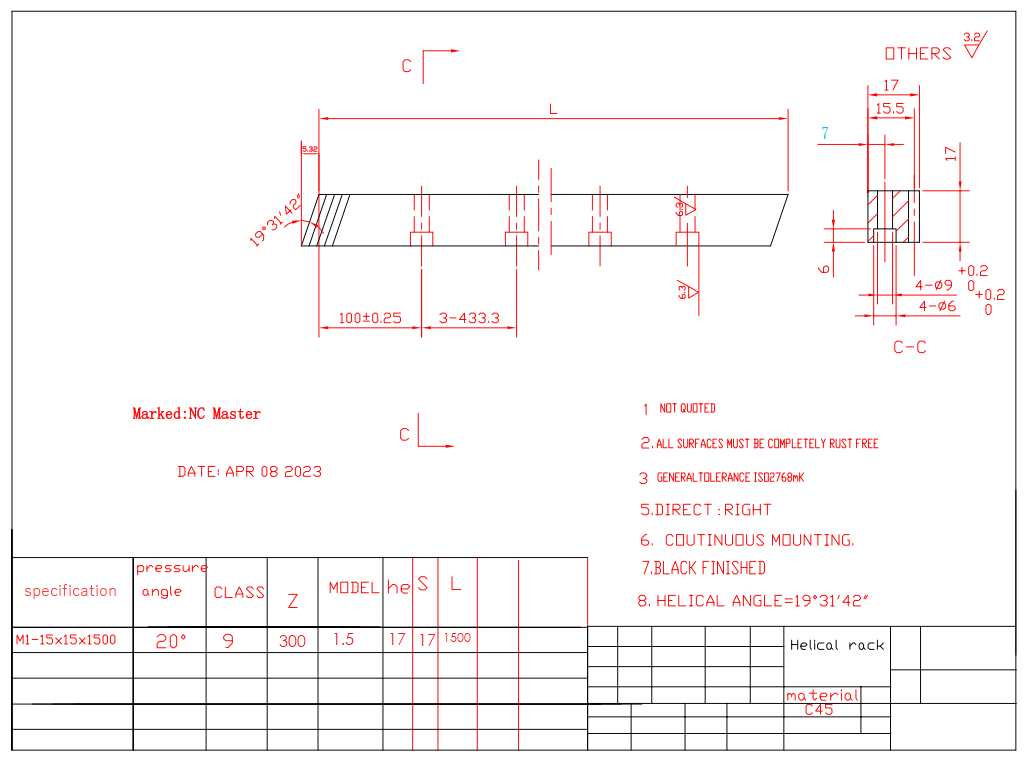

Helical Mod 1.5 - 1500mm Rack System
The material is C45 similar to CK1045, K1045, etc - It is a heat treatment material suitable for tooling applications, etc.
Tinions are sold separately.
We have the capability to premanufacture our products with exact measurements of 1000mm, 1500mm, and 2000mm.
However, it is crucial to consider that a loss of 3mm may occur during the cutting process due to the cutting blade.
Improvements:
(2022) Changed hole location to the side of the rack instead of the bottom with countersunk
(2020)The rack is blackened to add resistance to rust.
(2020 )Various thread hole intervals were added.
A possible future improvement is to get it manufactured at 3500mm
