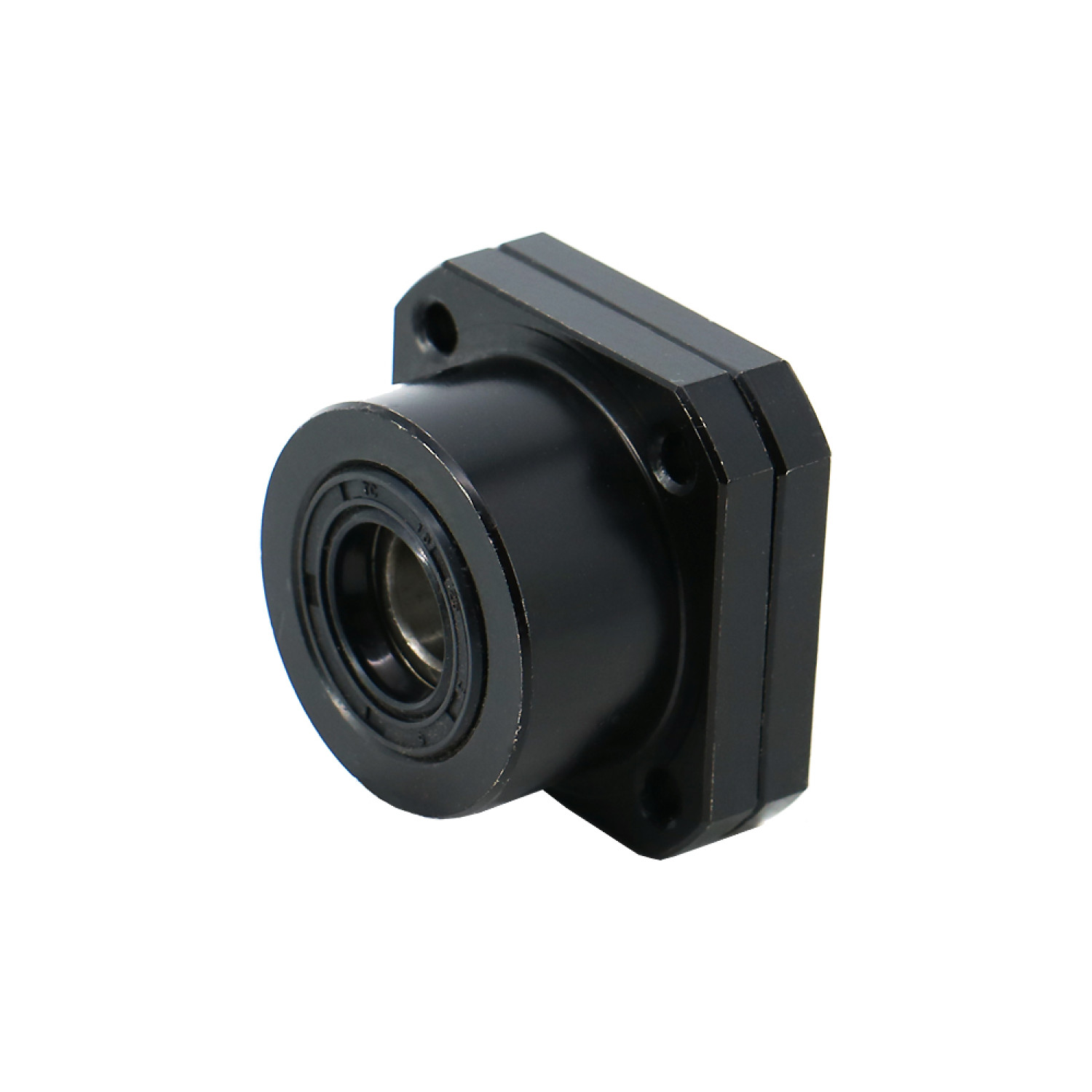

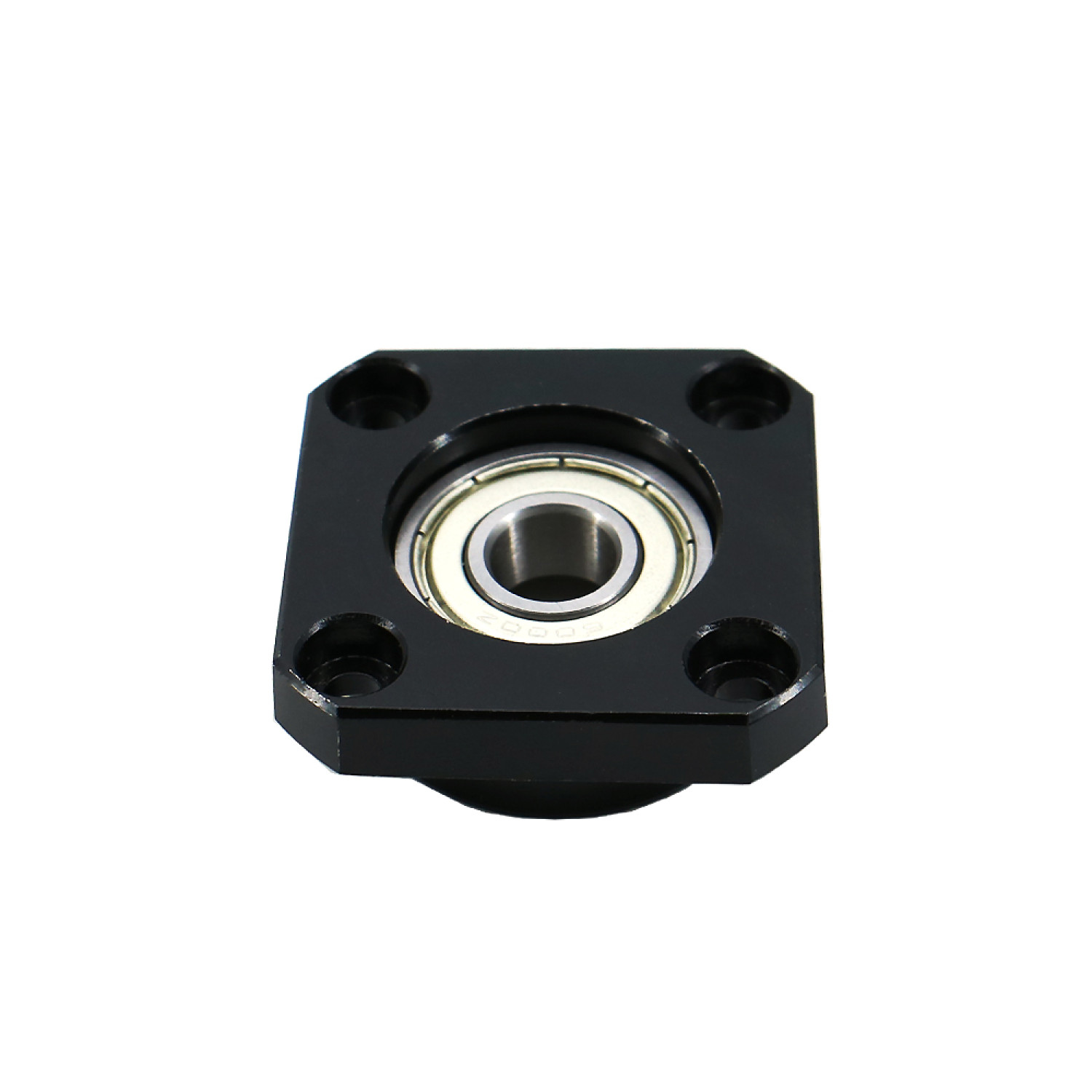

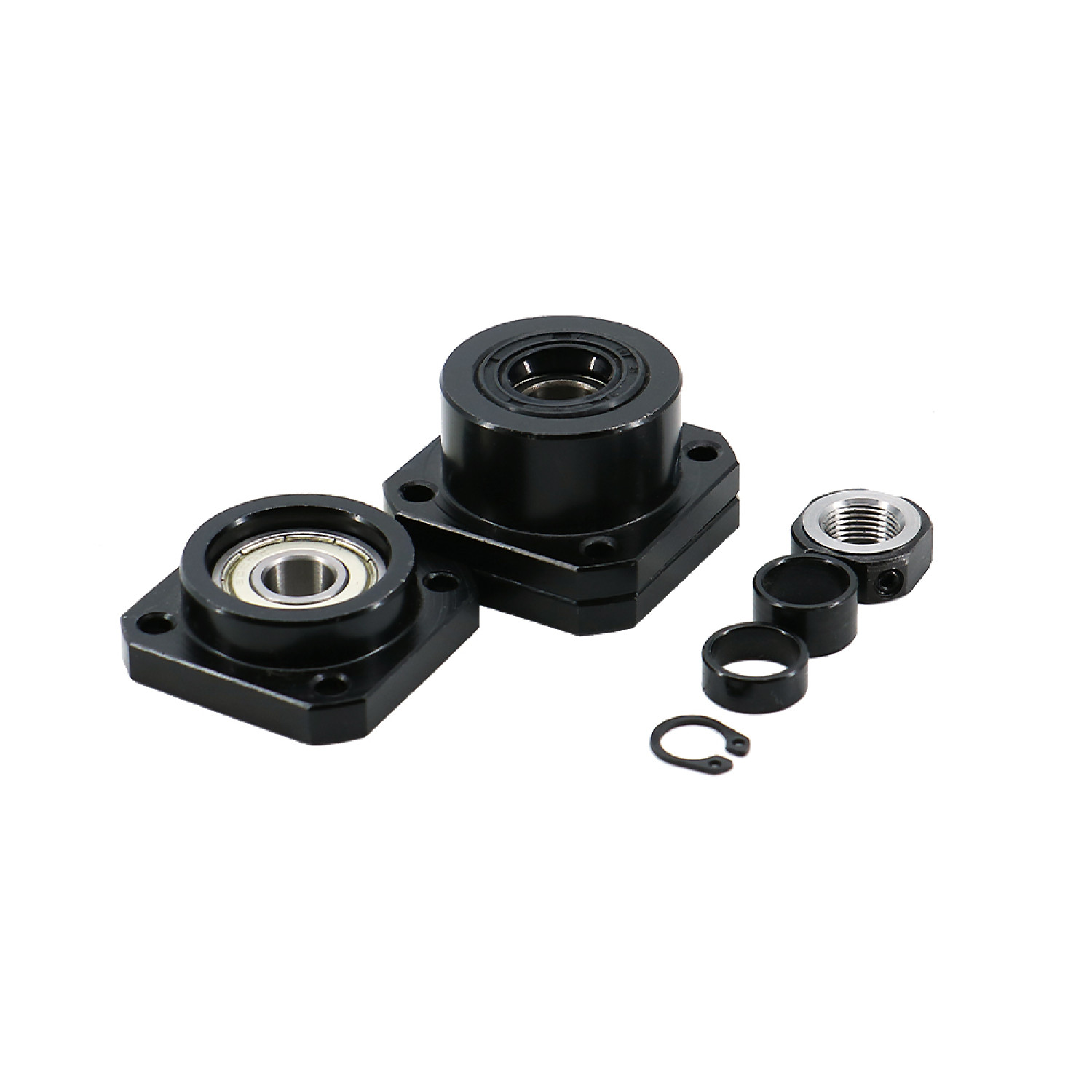

FKFF20 - END SUPPORT SUITE 25MM BALLSCREW
FKFF20 - END SUPPORT SUITE 25MM BALLSCREW
An FK/FF ballscrew end-support suite in the listed designation. The official product record describes the suite as suitable for listed machined ballscrew ends, while the FK/FF reference sheet shows the fixed-side and floated-side support families. This draft avoids inferring an unverified shaft, bearing or load specification.
FKFF20 quick reference
Approximate listing reference only. Verify the supplied item and the complete machine design before final fitment.
Ballscrew FKFF support reference sheet
Select the image for the full-size source reference. The image is supporting information; confirm the supplied part before ordering or installation.
.jpg)
Exact public title verified from the official NCMASTER FKFF category and product record. The product record states that the suite suits listed machined ballscrew ends; the local FK/FF data sheet is the fixed-side/floated-side dimensional reference. Confirm the supplied suite and exact ballscrew fit before publication.
Selection and use
- Match the FKFF designation to the compatible machined ballscrew end and the correct fixed-side/floated-side arrangement. Confirm the shaft size, support orientation, mounting pattern, bearing fit and supplied suite against the FK/FF sheet before installation.
- Use the matching guide, shaft or carriage components shown by the family reference.
- Keep the mounting surface aligned and suitably supported for the intended application.
Included in this draft listing
1 x FKFF20 - END SUPPORT SUITE 25MM BALLSCREW
Package quantity and any separately supplied matching components must be confirmed against the live product record before publication.
