End Rod Female Bearing PHS PHS25- M25 x 2
End Rod Female Bearing PHS PHS25- M25 x 2
A female threaded rod-end bearing in the listed PHS or SI designation. This draft keeps the exact thread and bearing reference visible while the supplied NCMASTER End Rod sheet remains the source for dimensions and catalogue values.
PHS25 quick reference
Approximate listing reference only. Verify the supplied item and the complete machine design before final fitment.

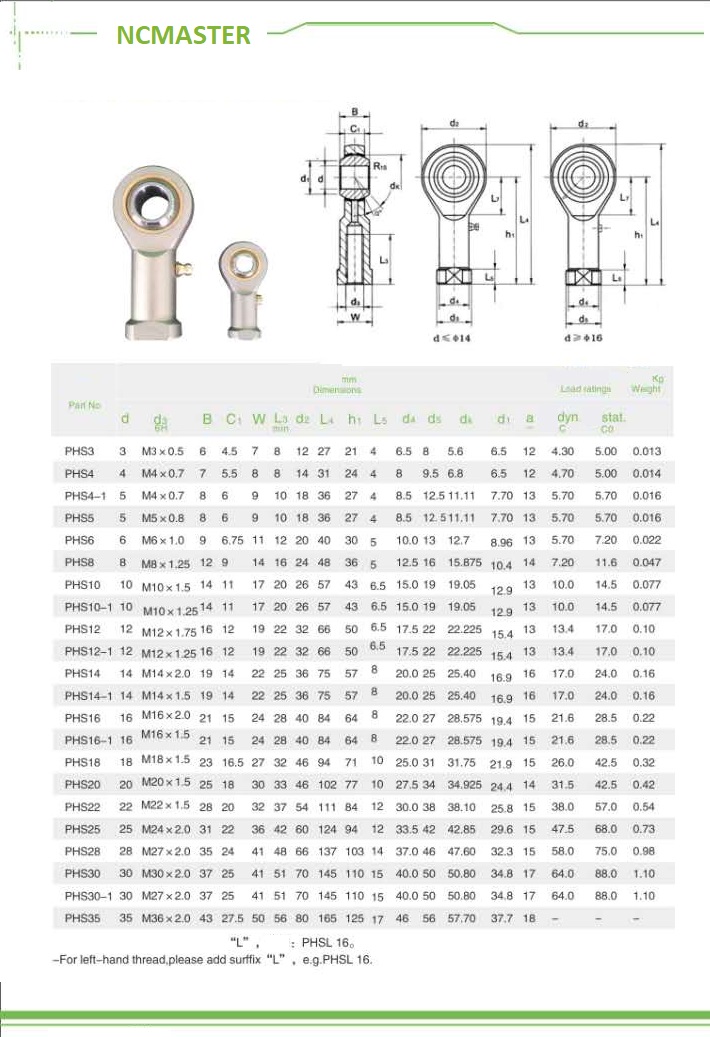

End Rod female reference sheet
Select the image for the full-size source reference. The image is supporting information; confirm the supplied part before ordering or installation.
Exact public title verified from the official NCMASTER End Rod Bearing Support category. The local End Rod sheet is the female rod-end dimensional reference; confirm the supplied thread, articulation and application before publication.
Selection and use
- Match the female thread and rod-end size to the mating threaded shaft or link. Confirm thread direction, clearance, articulation and the supplied rod end before installation.
- Use the matching guide, shaft or carriage components shown by the family reference.
- Keep the mounting surface aligned and suitably supported for the intended application.
Included in this draft listing
1 x End Rod Female Bearing PHS PHS25- M25 x 2
Package quantity and any separately supplied matching components must be confirmed against the live product record before publication.
