Drag Chain Carrier HTTL65 - 65x150x1000mm Long
Click Image for Gallery
HTTL65 cable management

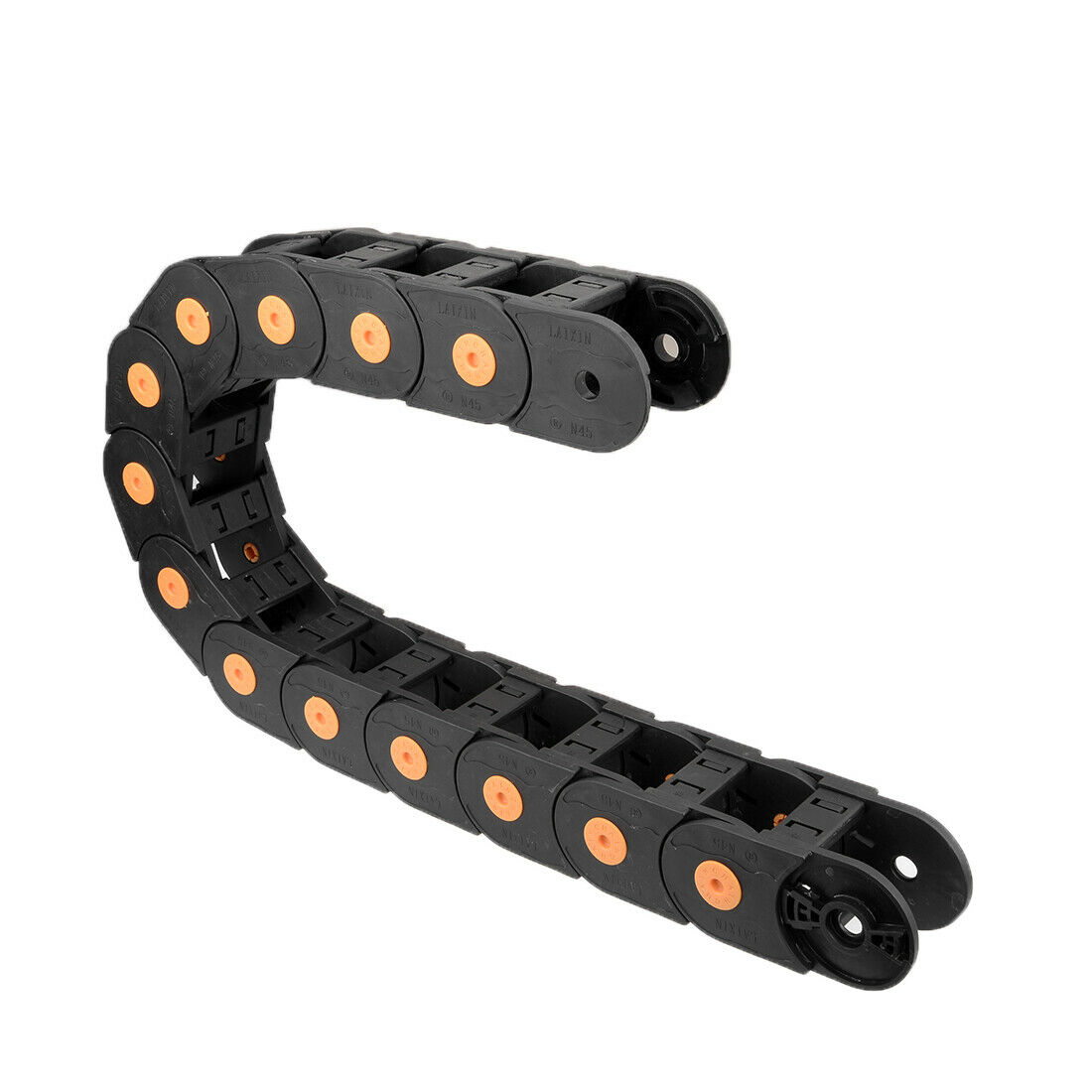

HTTL65 Cable Drag Chain - 65 x 150mm x 1000mm - Bridge style
A 1m HTTL65 reinforced-nylon cable carrier with 65 x 150mm internal space for guiding cables and hoses through repeated movement. The bridge-style carrier provides practical access for installation and maintenance on CNC machinery and automation equipment.
At a glance
Internal size65 x 150mm
Length1000mm
Carrier styleBridge style
ConstructionReinforced nylon
Flexible cable and hose guidance
- Guides cables and flexible hoses through repeated machine movement.
- Also known as a cable carrier or energy chain for CNC and automation equipment.
- Reinforced nylon construction keeps the carrier light and corrosion resistant.
- Choose a bend radius that meets the minimum bend requirement of the largest cable or hose.
- Support and align both carrier ends to avoid twisting during travel.

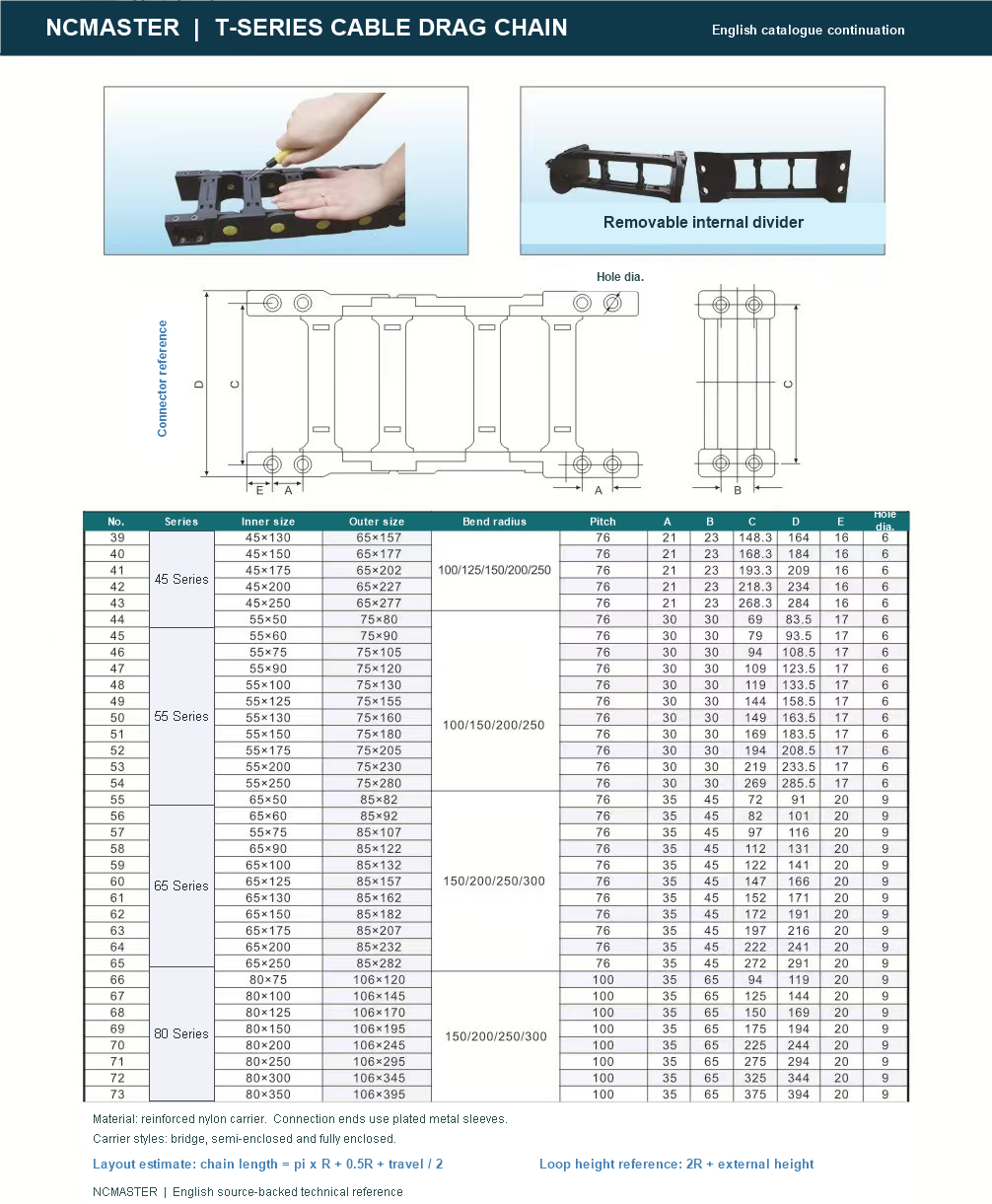

Dimensional data sheet
The internal size identifies the usable cable space. Confirm the selected bend radius and mounting arrangement for the installation.
SeriesHTTL65
Internal size65 x 150mm
Outside size85 x 182mm
Bend radius options150 / 200 / 250 / 300mm
Pitch76mm
Connection reference9mm
Open full-size English dimensional table
Ordering note
This listing is for one 65 x 150mm x 1000mm bridge style cable drag chain.
Australia-wide supply
Stocked in Melbourne for delivery to Victoria, New South Wales, Queensland, South Australia, Western Australia, Tasmania, the ACT and Northern Territory.
