Drag Chain Carrier HTTL35 - 35x60x1000mm Long Fully Enclosed
Click Image for Gallery
HTTL35 cable management

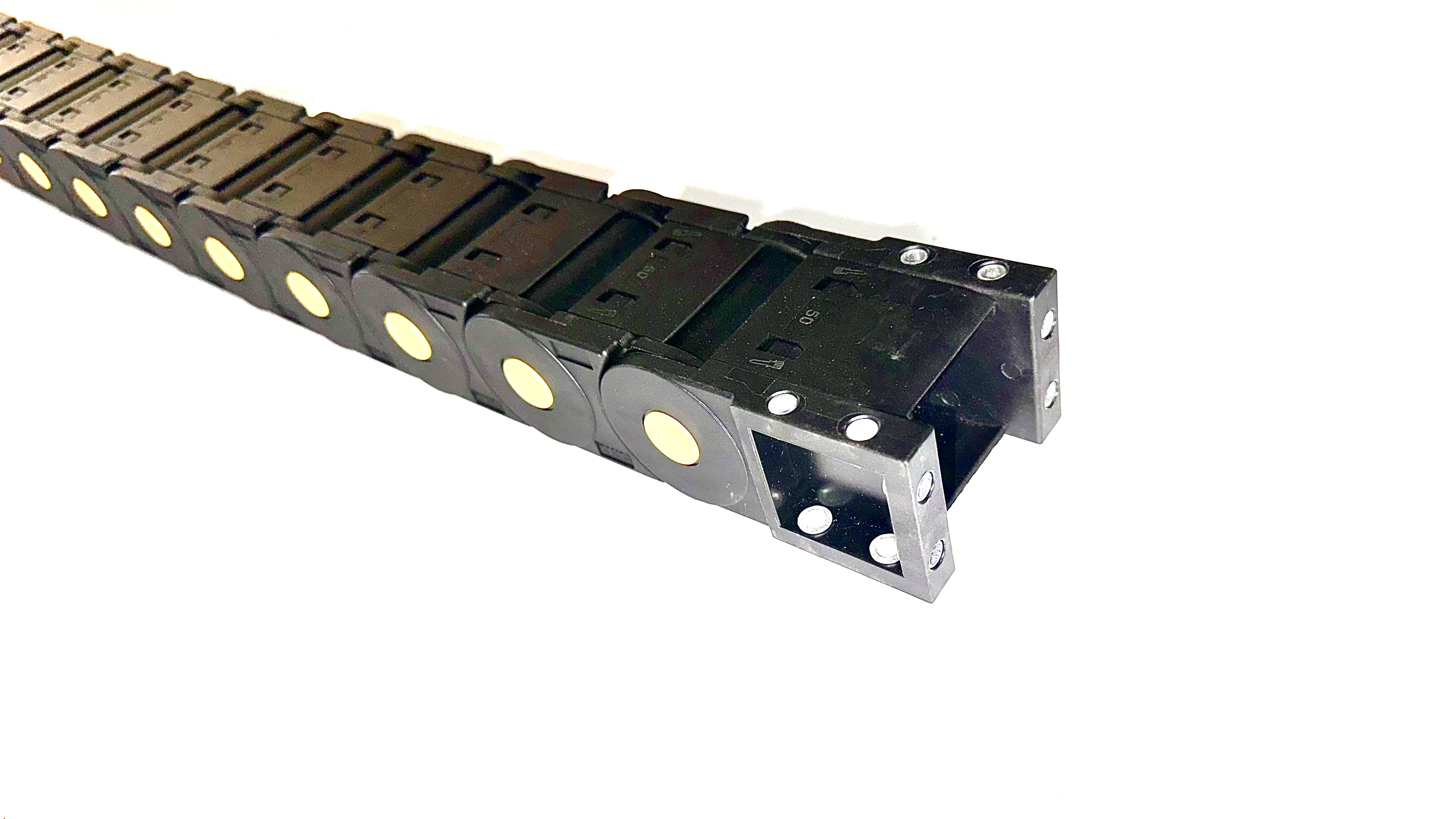

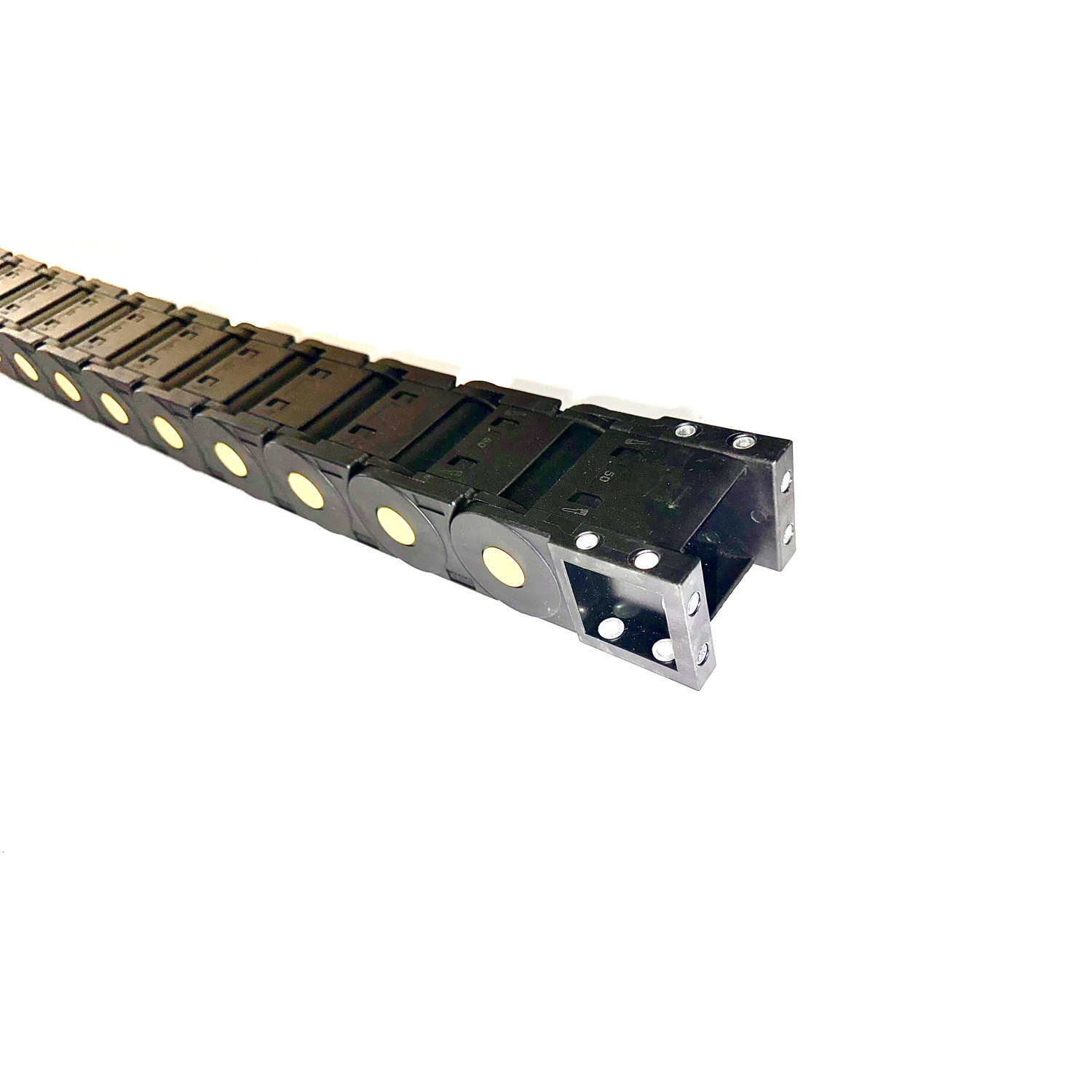

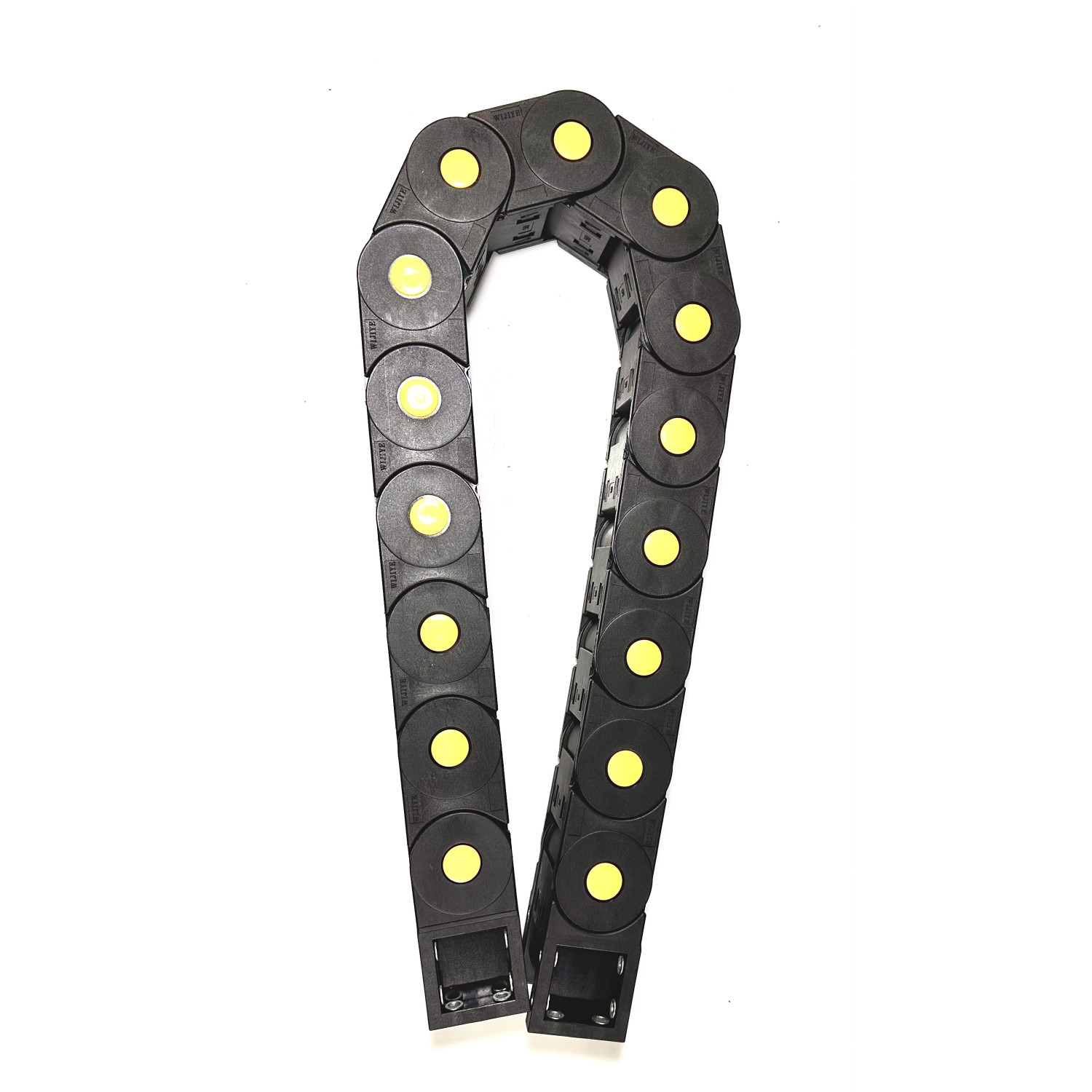

HTTL35 Cable Drag Chain - 35 x 60mm x 1000mm - Fully enclosed
A 1m HTTL35 reinforced-nylon cable carrier with 35 x 60mm internal space and fully enclosed links that help shield moving cables and hoses from chips and workshop debris. Suitable for CNC machinery, automation equipment and other repeated-motion installations.
At a glance
Internal size35 x 60mm
Length1000mm
Carrier styleFully enclosed
ConstructionReinforced nylon
Flexible cable and hose guidance
- Guides cables and flexible hoses through repeated machine movement.
- Also known as a cable carrier or energy chain for CNC and automation equipment.
- Reinforced nylon construction keeps the carrier light and corrosion resistant.
- Choose a bend radius that meets the minimum bend requirement of the largest cable or hose.
- Support and align both carrier ends to avoid twisting during travel.
Dimensional data sheet
The internal size identifies the usable cable space. Confirm the selected bend radius and mounting arrangement for the installation.
SeriesHTTL35
Internal size35 x 60mm
Outside size55 x 85mm
Bend radius options75 / 100 / 125 / 150 / 200mm
Pitch66.5mm
Connection reference5.9mm
Open full-size English dimensional table
Ordering note
This listing is for one 35 x 60mm x 1000mm fully enclosed cable drag chain.
Australia-wide supply
Stocked in Melbourne for delivery to Victoria, New South Wales, Queensland, South Australia, Western Australia, Tasmania, the ACT and Northern Territory.
