Closed-Loop NEMA 34 Stepper Motor 12NM + Driver SS86

It took us 6 months to Interpret, translate, and tested this product.

Here's a brief summary below.

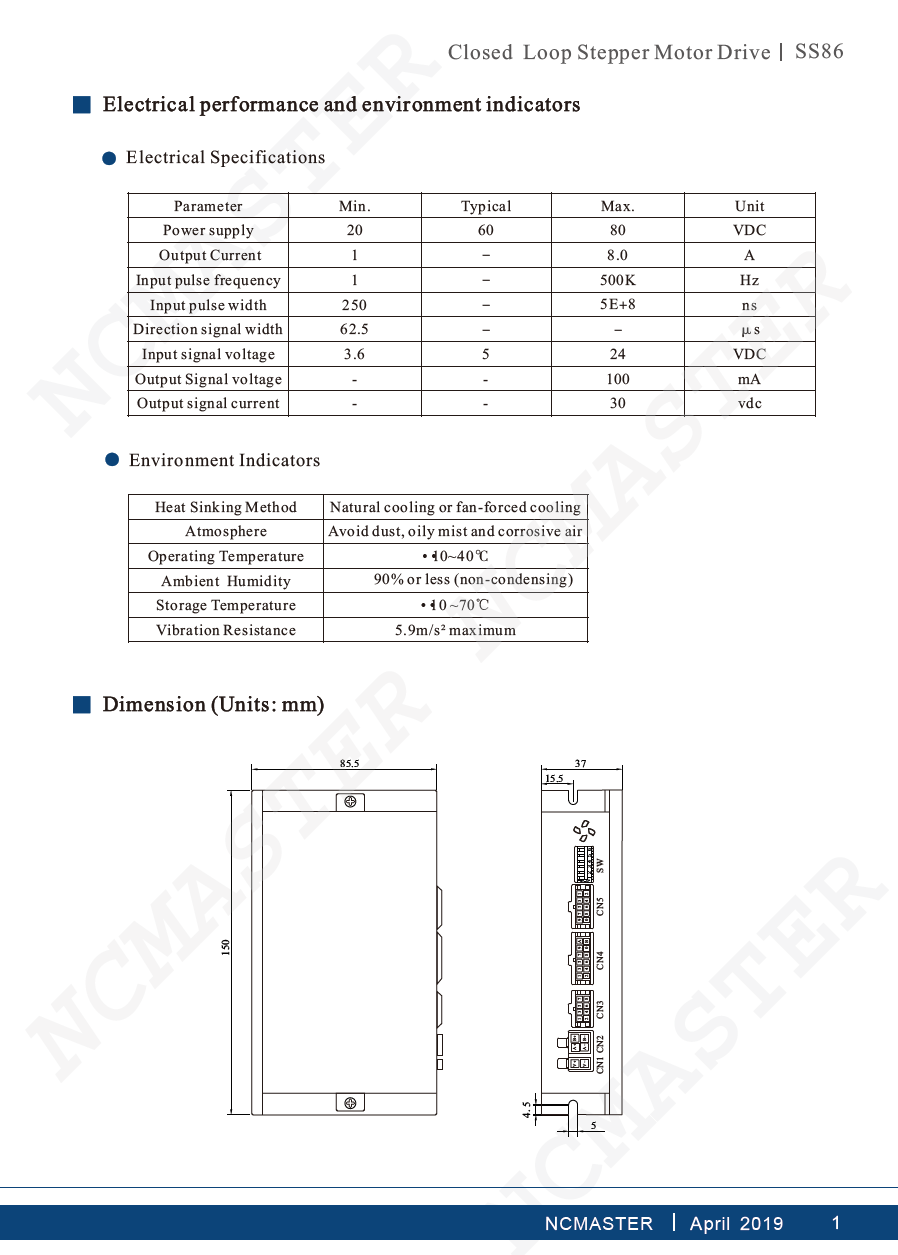

Full documentation and specifications also available.

Based on the previously closed-loop motor, we have simplified the design to make it easier for our customers.

All wiring has been preconfigured.

You only have to connect the power supply and the signal to the breakout board and you'll set.

Brief introduction:

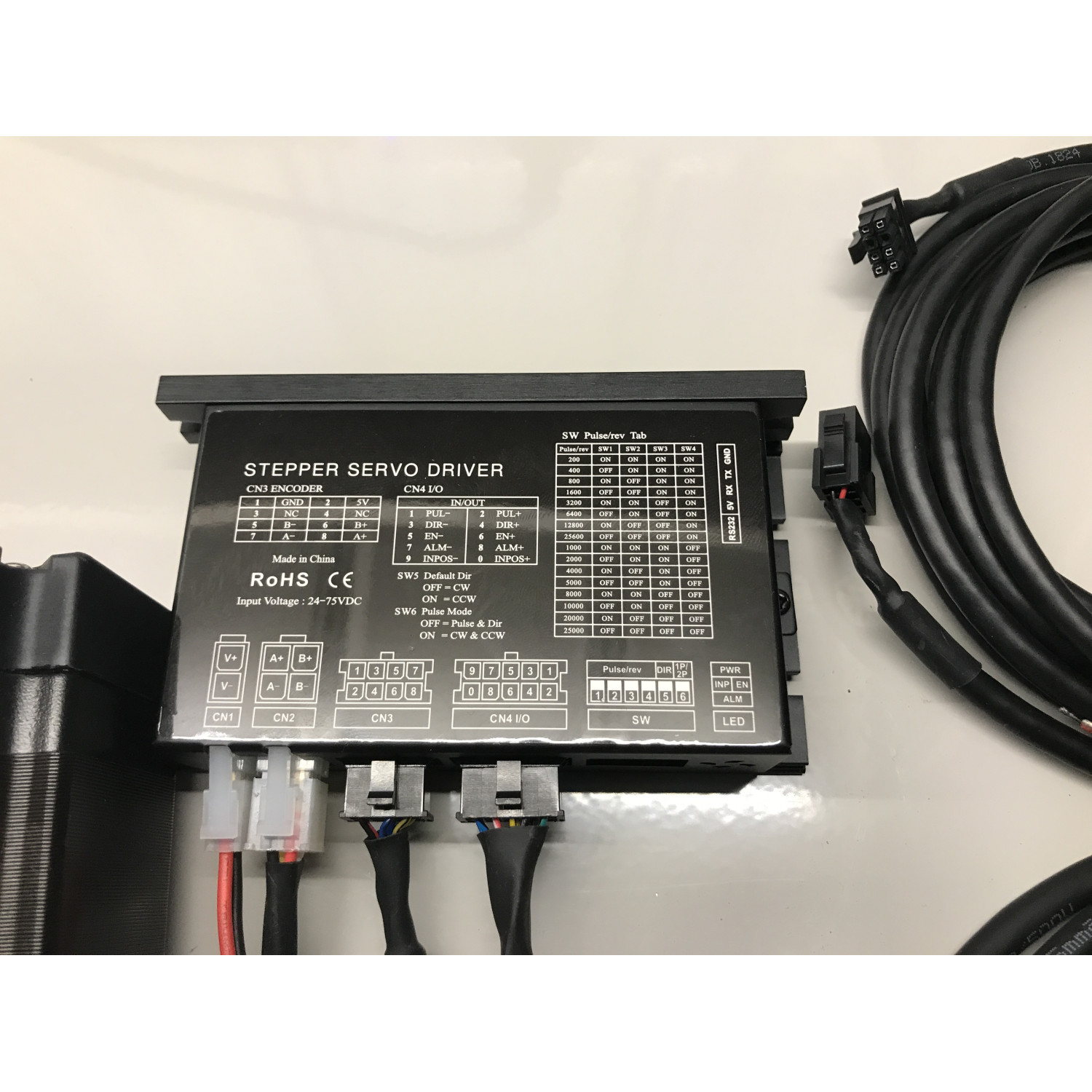

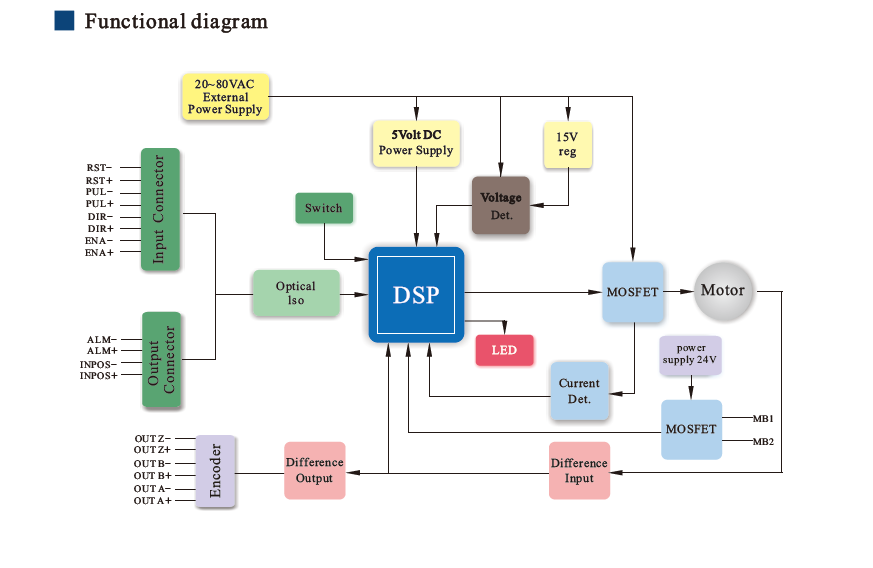

With high performance encoder, SS86 stepper servo driver gives position feedback signal to Cotex-M4
ARM processor and adjust the location every 50us. It has more accurate control both while running and
static positioning compared with many other similar products. SS86is used for 86mm closed loop stepper
motor. The Step-Servo is an innovative revolution for the world of stepper motor, it enhances the stepper
motors with servo technology to create a product with exceptional feature and broad capability.

Full documents available for download on the "Documentation" Tab.

This Package included the following:

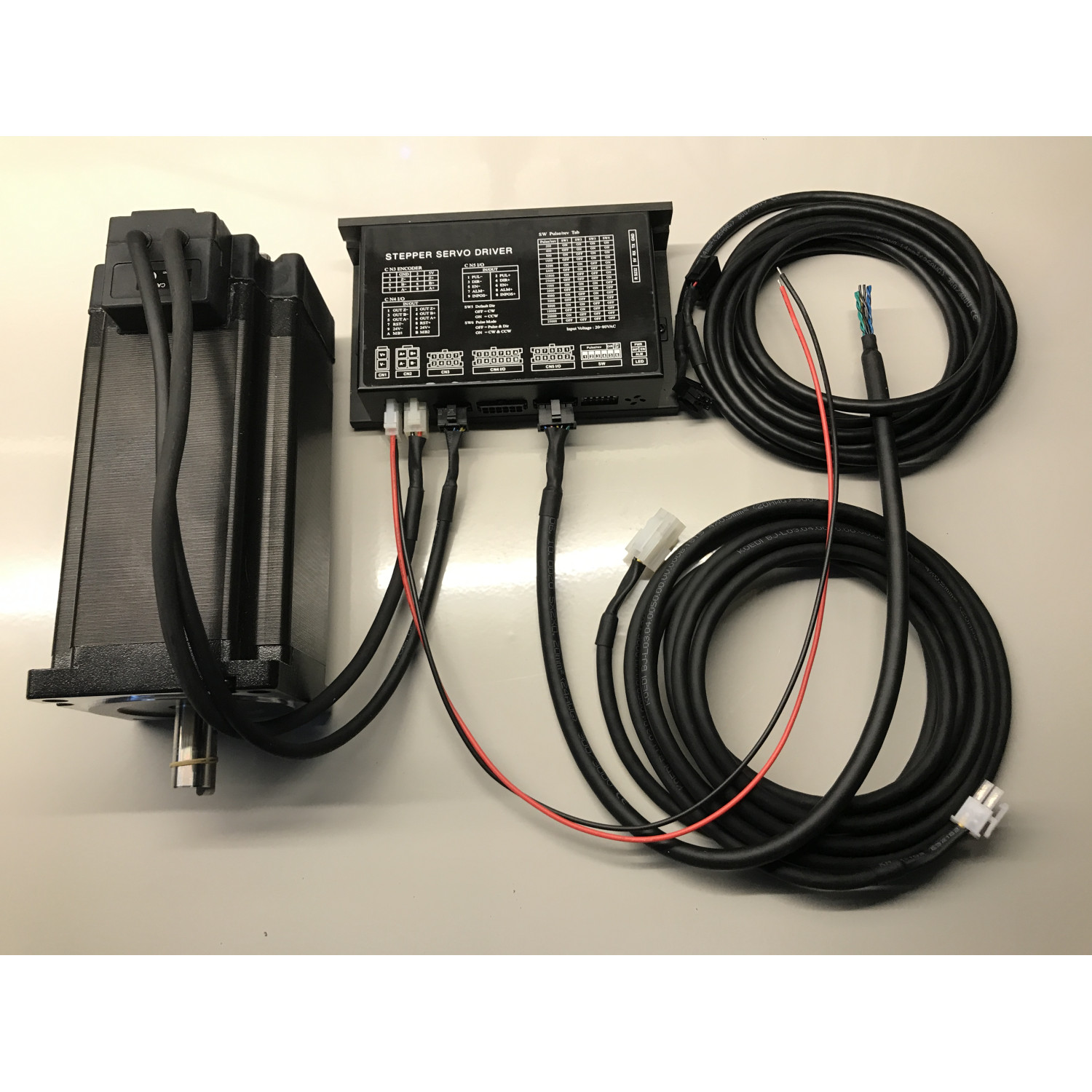

1x Closed-Loop NEMA 34 Stepper Motor 12NM + Driver SS86
