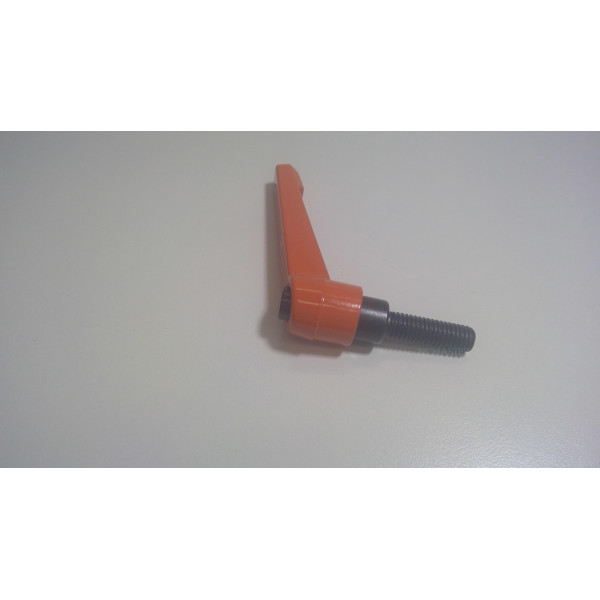

Alloy Handle Adjustable Clamp Lever M6 x 25mm
Alloy Handle Adjustable Clamp Lever M6 x 25mm
An adjustable clamp lever for tightening or releasing a component by hand. This draft keeps the thread and handle length visible without assuming a clamping force or application limit that has not been confirmed on the product record.
M6x25 quick reference
Approximate listing reference only. Verify the supplied item and the complete machine design before final fitment.

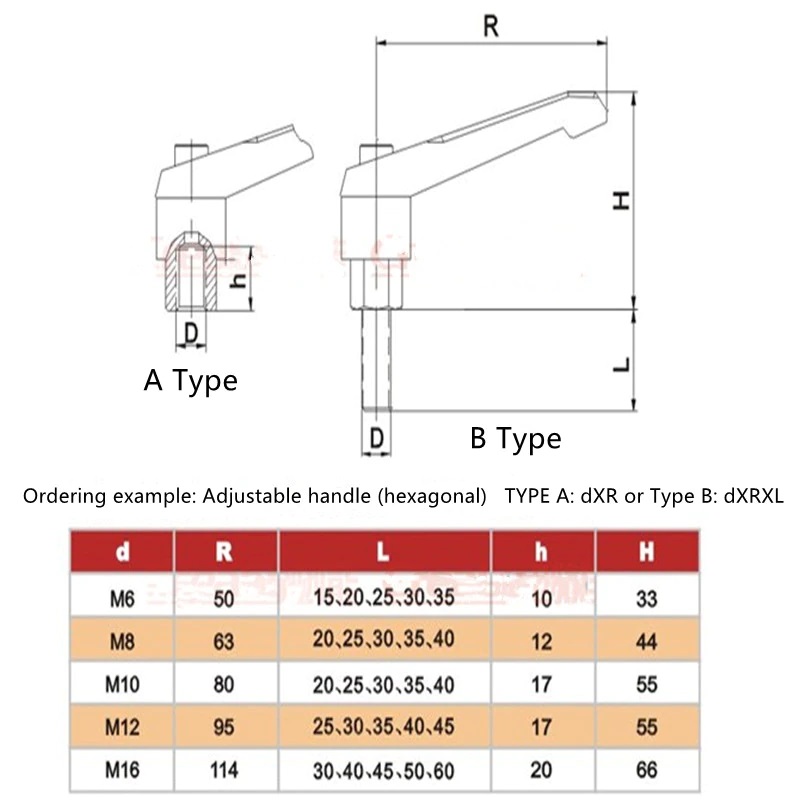

Alloy clamp lever reference sheet
Select the image for the full-size source reference. The image is supporting information; confirm the supplied part before ordering or installation.
Exact public title verified from the NCMASTER Alloy Clamp Lever category; the family handle drawing is the dimensional reference. Confirm thread, handle length and package contents on the live record.
Selection and use
- Match the thread size and handle length to the threaded clamp or fixture. Confirm the supplied lever, thread engagement and clearance before tightening.
- Use the matching guide, shaft or carriage components shown by the family reference.
- Keep the mounting surface aligned and suitably supported for the intended application.
Included in this draft listing
1 x Alloy Handle Adjustable Clamp Lever M6 x 25mm
Package quantity and any separately supplied matching components must be confirmed against the live product record before publication.
